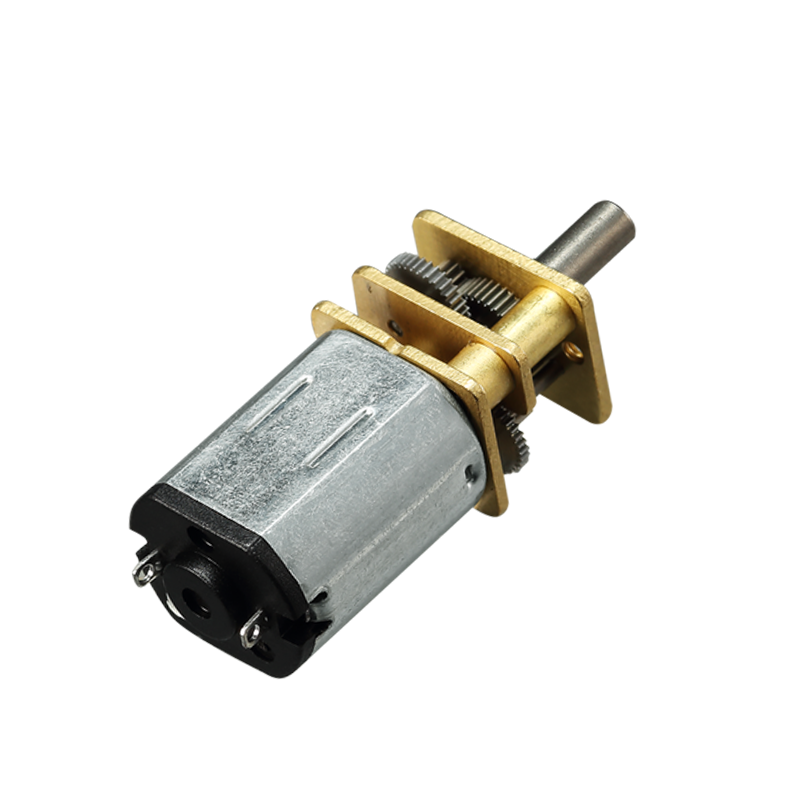

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder
Product Description
GM12-N20VA DC 6v mini metal N20 gear motor with encoder

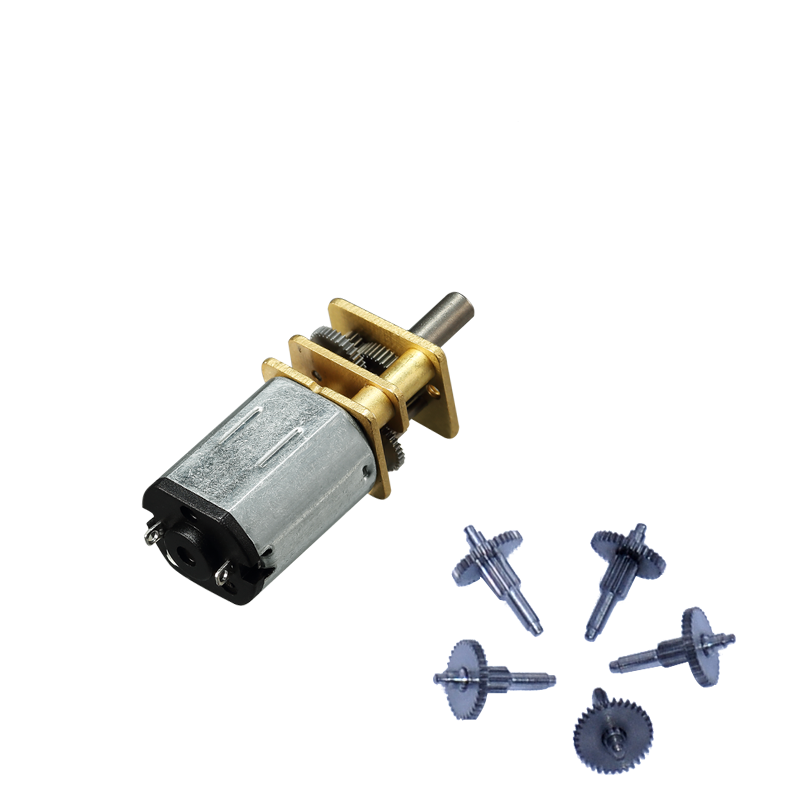

- 12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.1Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application

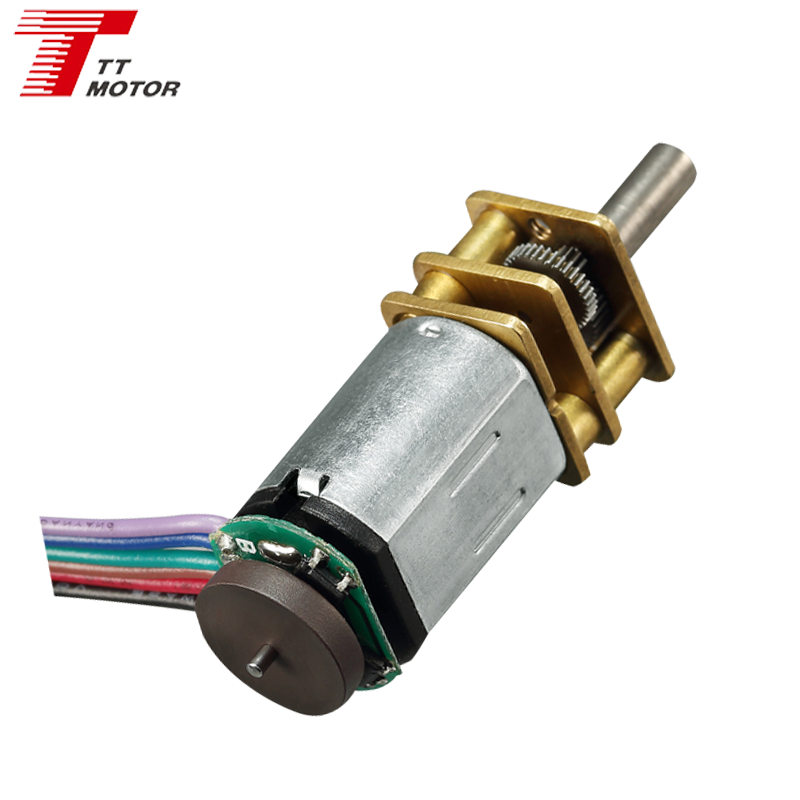

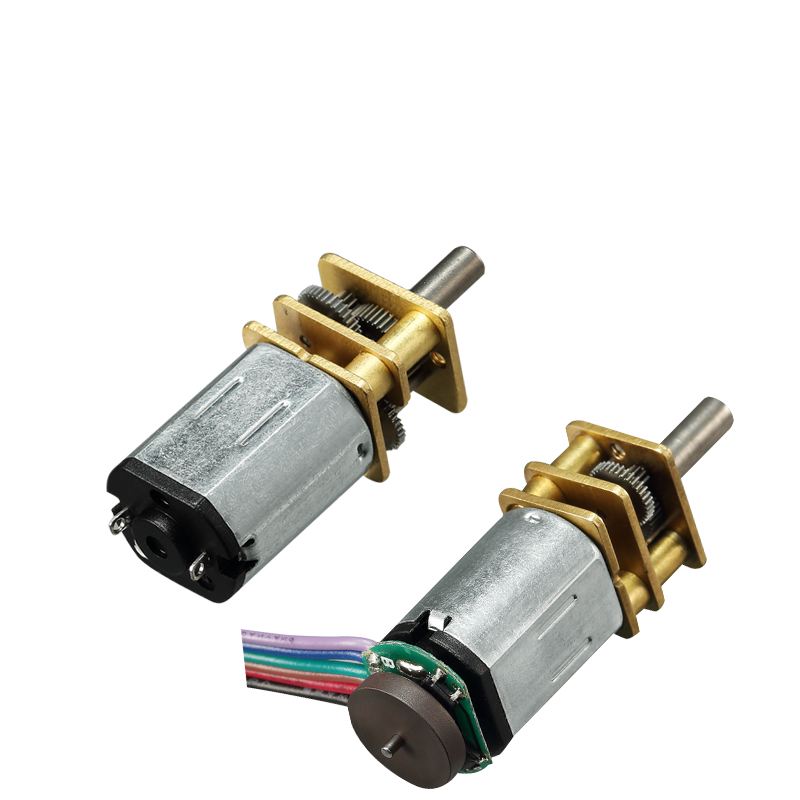

- DC Gear motors can match encoder, 3ppr
- Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000
Model: Motor GM12-N20VA Specification
| Model | Rated Voltage | No-Load Speed | No-Load Current | Rated Speed | Rated Torque | Rated Current | Output Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| TFF-N20VA-13110 | 2.4V DC | 14800 r/min | 60 mA | 12000 r/min | 2.5 g.cm | 200 mA | 0.31 W | 13 g/cm | 1.20 A |
| TFF-N20VA-09220 | 5V DC | 14800 r/min | 30 mA | 12000 r/min | 2.5 g.cm | 120 mA | 0.31 W | 13 g/cm | 0.52 A |
| TFF-N20VA-05430 | 12V DC | 16000 r/min | 15 mA | 12500 r/min | 3.0 g.cm | 60 mA | 0.35 W | 13 g/cm | 0.25 A |
GM12-N20VA-13110-xxx Performance Curves
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed rpm | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-09220-xxx Performance Curves
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed rpm | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-05430-xxx Performance Curves
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 |
| Rated speed rpm | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 |
| Rated torque kg.cm | 0.02 | 0.05 | 0.08 | 0.18 | 0.27 | 0.37 | 0.45 | 0.5 | 0.5 |
| Max. tolerance torque kg.cm | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Business Machines
Vending Machines, Printers, ATM, Copiers and Scanners
Camera and Optical
Video Cameras, Projectors
Lawn and Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
