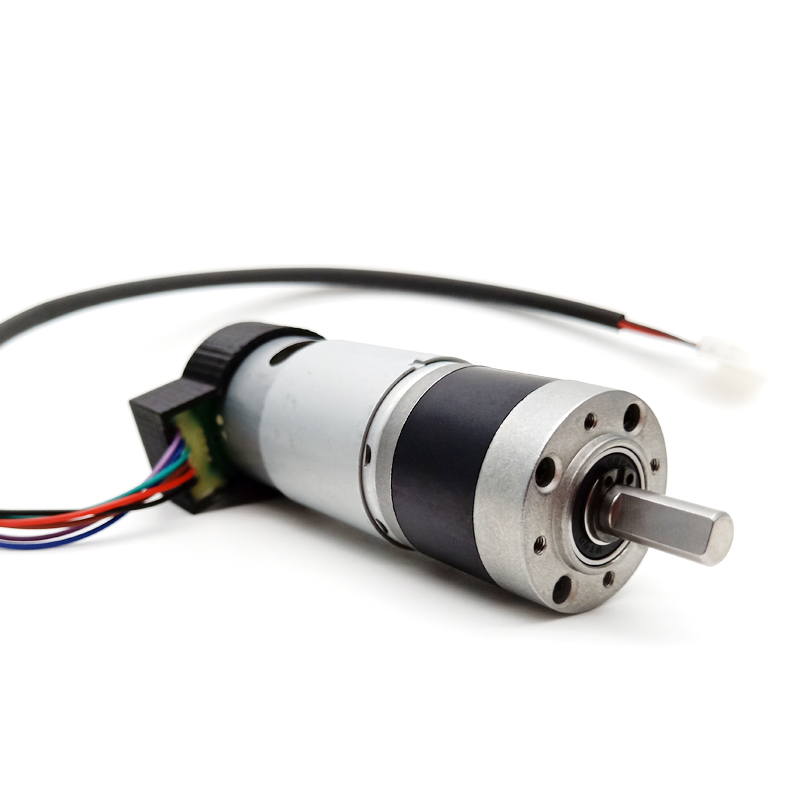

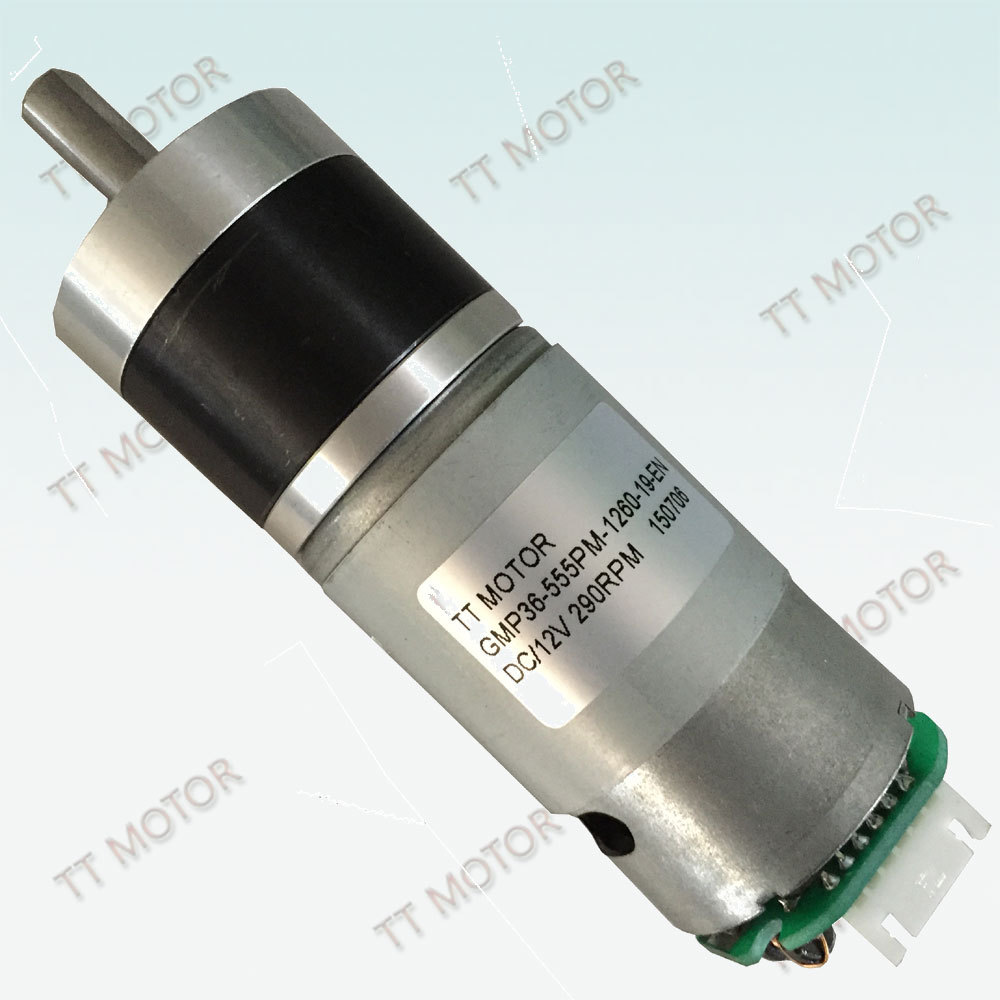

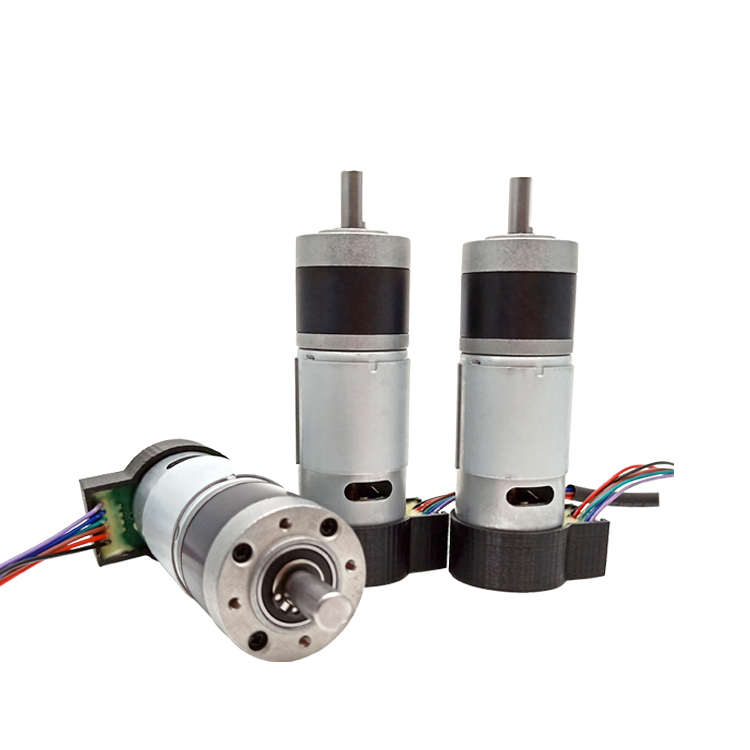

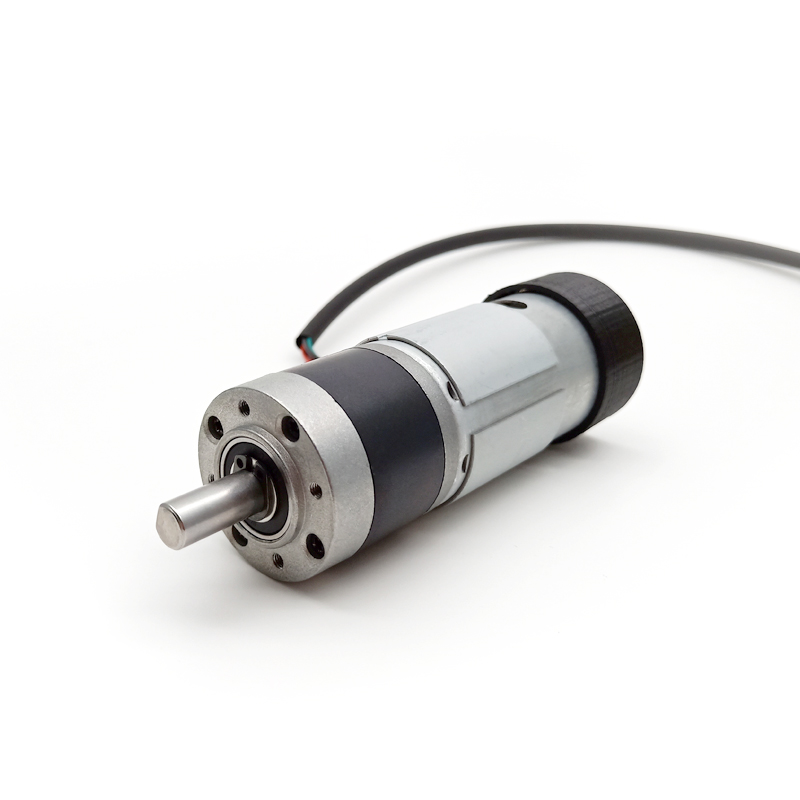

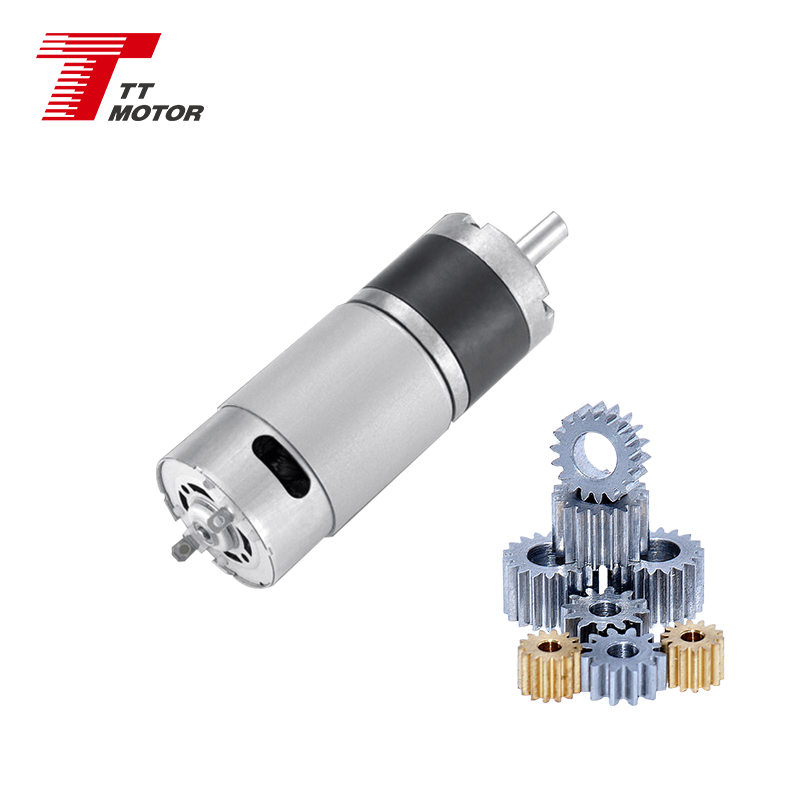

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder
Product Description
GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor Encoder
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V dc gear motor, optical equipment, Automat cordless power tool, lighting, etc.

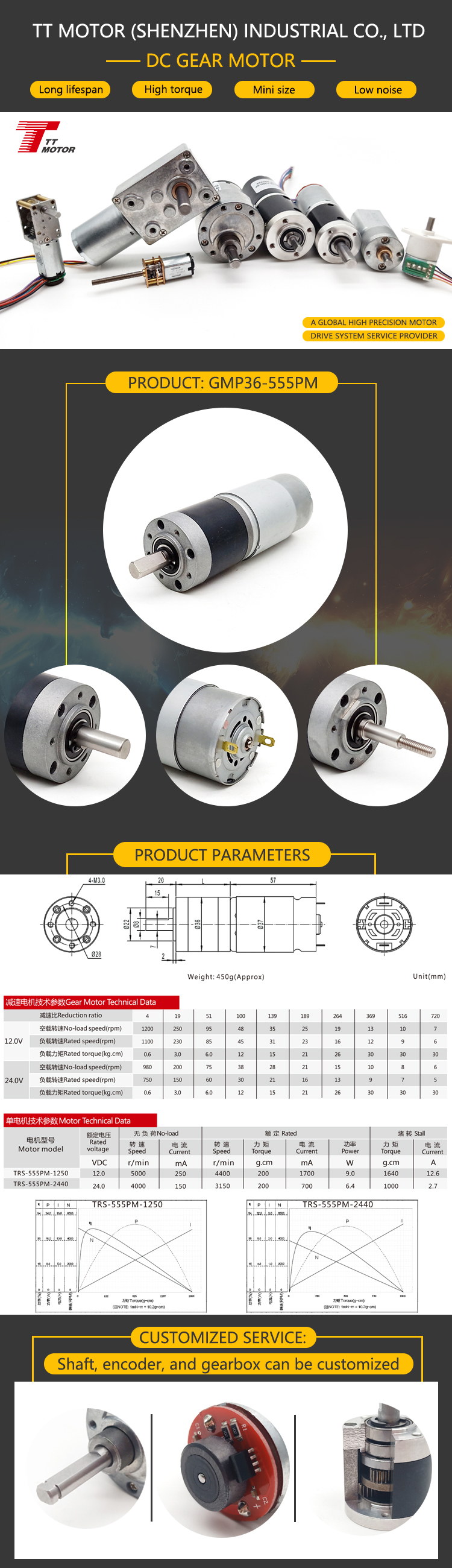

Model Specifications: Gear Motor GMP36-555PM
| Model Code | Rated Voltage | No-load Performance | Rated Performance | Stall Performance |
|---|---|---|---|---|
| TTRS-555PM-1233 | 12VDC | Speed: 3300 r/min | Speed: 2800 r/min | Torque: 1150 g.cm |
| - | Current: 200mA | Torque: 200 g.cm | Current: 5.5A | |
| - | - | Current: 1000mA | Power: 5.7W | |
| TTRS-555PM-1260 | 12VDC | Speed: 6000 r/min | Speed: 5250 r/min | Torque: 2200 g.cm |
| - | Current: 300mA | Torque: 290 g.cm | Current: 15.0A | |
| - | - | Current: 2400mA | Power: 16W | |
| TTRS-555PM-2440 | 24VDC | Speed: 2400 r/min | Speed: 3150 r/min | Torque: 1000 g.cm |
| - | Current: 150mA | Torque: 200 g.cm | Current: 2.7A | |
| - | - | Current: 700mA | Power: 6.4W |
Main Features
- 36mm Planetary reducer plus 3530, 5 series carbon brush motor and TEC3650 & 3640 brushless motor.
- Small size DC gear motor with low speed and big torque.
- 36mm gear motor provides 3.0Nm torque and more reliability.
- Suitable for small diameter, low noise, and big torque applications.
- DC Gear motors can match encoder, 11pr.
- Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720.
GMP36-555PM-1233-xxx Detailed Parameters
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 750 | 160 | 60 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated speed rpm | 700 | 150 | 55 | 28 | 20 | 15 | 11 | 8 | 5.5 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max. tolerance torque kg.cm | 3.7 | 15 | 35 | 70 | 70 | 70 | 70 | 70 | 70 |
GMP36-555PM-1260-xxx Detailed Parameters
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1400 | 300 | 110 | 55 | 42 | 32 | 23 | 16 | 11.5 |
| Rated speed rpm | 1300 | 275 | 100 | 50 | 38 | 28 | 20 | 15 | 10.5 |
| Rated torque kg.cm | 0.9 | 3.8 | 9 | 18 | 22 | 30 | 30 | 30 | 30 |
| Max. tolerance torque kg.cm | 5 | 20 | 60 | 60 | 60 | 70 | 70 | 70 | 70 |
GMP36-555PM-2440-xxx Detailed Parameters
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 980 | 200 | 75 | 38 | 28 | 21 | 15 | 10 | 7.5 |
| Rated speed rpm | 750 | 155 | 60 | 30 | 21 | 16 | 13 | 9.5 | 7 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max. tolerance torque kg.cm | 3.2 | 13 | 25 | 50 | 60 | 70 | 70 | 70 | 70 |
Product Application Scope
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Industry Applications
| Industry Type | Application 1 | Application 2 | Application 3 | Application 4 |
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
About Our Business
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in overseas sales by seeking global partners.
Key Customer Partnerships
NIKE, FLEXTRONICS, STANLEY, etc.
Packaging & Delivery Solutions
Standard exporting packing configurations.
Estimated Shipping Delivery Times
- DHL: 3-5 working days
- UPS: 5-7 working days
- TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- Sea Cargo & Postal Mail: Depending on the destination port and country.
Customer Feedback Highlights
"Excellent quality, better price, good service, and on-time delivery."
Frequently Asked Questions (FAQ)
How to place an order?
Send us an inquiry → receive our quotation → negotiate order details → confirm the sample → sign the contract/deposit → mass production commences → cargo prepared → balance payment/delivery → long-term cooperation.
Can we order samples first?
Yes, samples are available for quality evaluations. Once the sample charge is processed, we will ship the unit. Please note that the sample fees will be refunded upon placing a formal commercial bulk order.
Which shipping options are available?
We support standard shipping routes via DHL, UPS, FedEx, TNT, EMS, China Post, and Ocean freight. If your project requires an alternative shipping setup, please notify our service department.
How long does the production and delivery take?
Production and delivery timelines are dependent on order size. Typically, manufacturing takes approximately 15 to 25 working days.
What should I do if my package has missing products?
If there are missing items in your shipment, please notify our customer support team immediately. We will check the packaging record and confirm your package contents to resolve the issue as quickly as possible.
What are the accepted payment methods and terms?
We accept payments via bank transfer (T/T), PayPal, and other commonly agreed payment systems. Our standard terms involve a 30% to 50% deposit beforehand, with the remaining balance cleared before final logistics dispatch.
