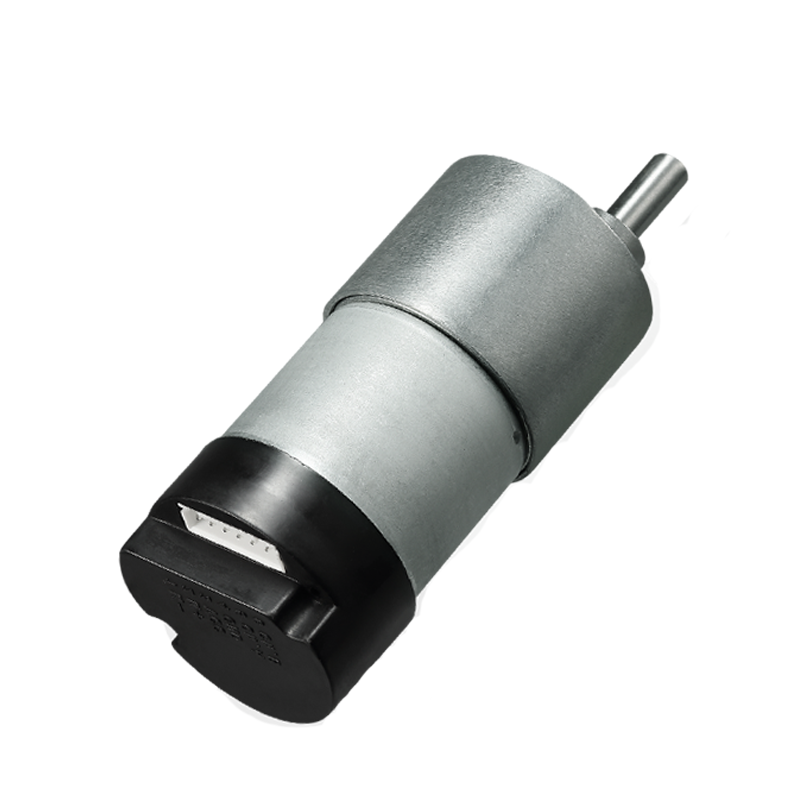

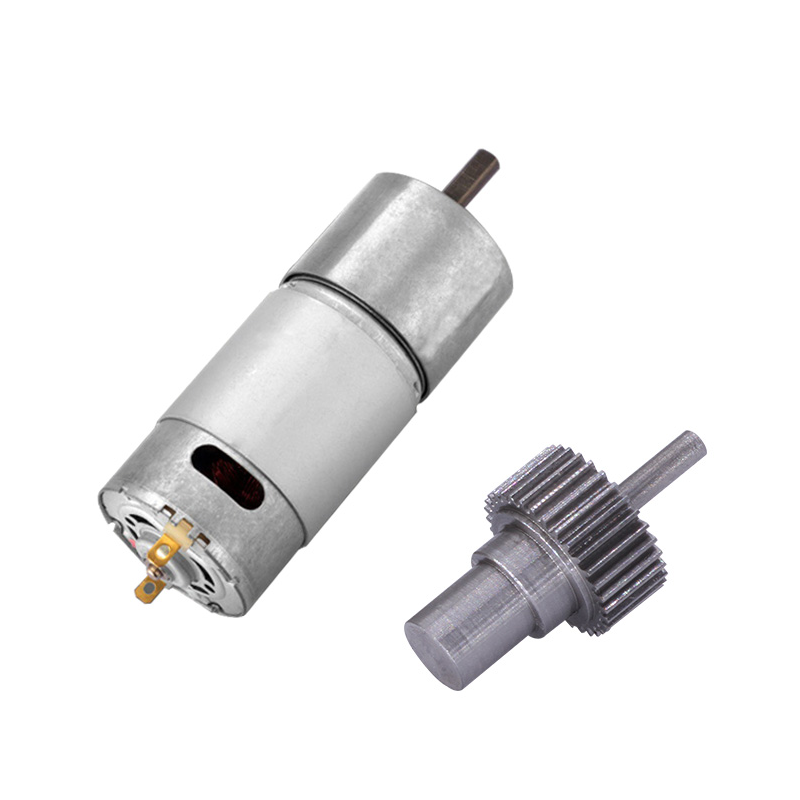

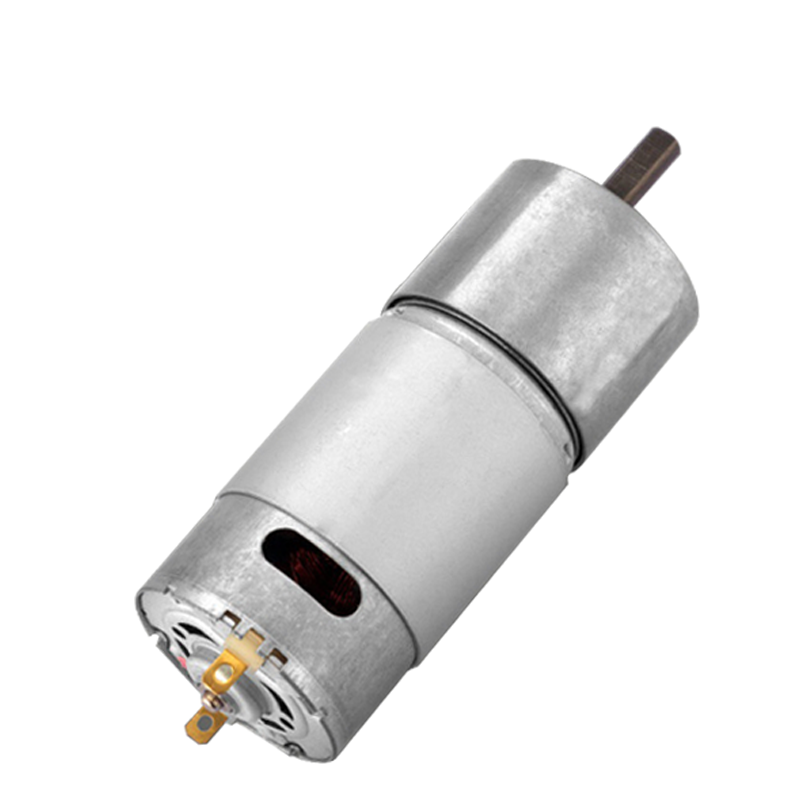

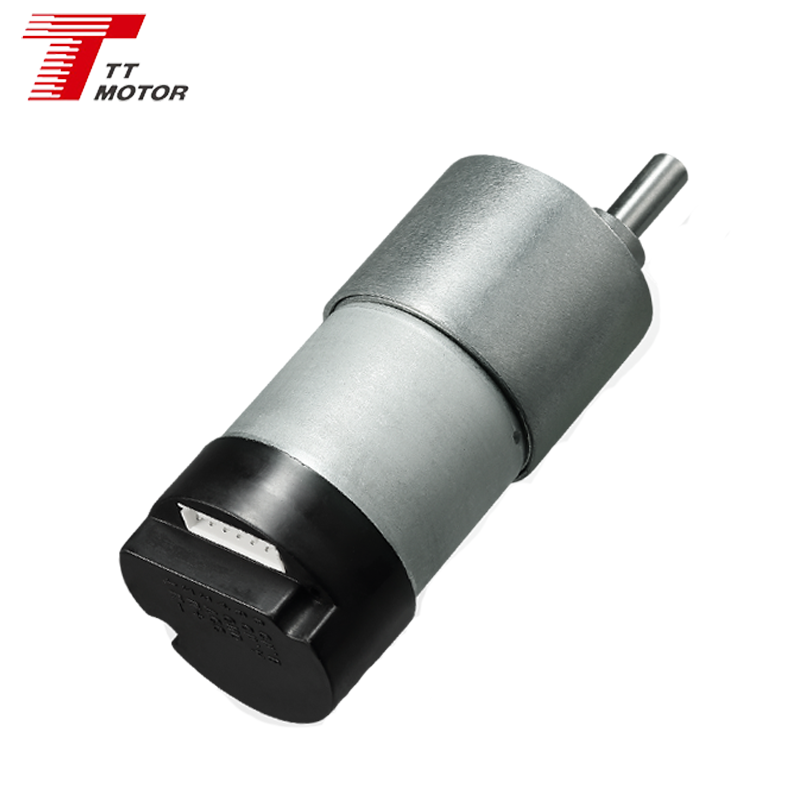

GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder
Product Description
GM37-555PM-EN 37mm high quality dc gear motor 24v with encoder
Product Description
Main Features
- 37mm Eccentric out shaft gearbox plus 520&3530&3527&5 series motor and TEC3650&3640 brushless motor
- Small size dc gear motor with low speed and big torque
- 37mm gear motor provide 1.0Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- DC Gear motors can match encoder, 11ppr
- Reduction ratio: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810
| Model: Gear Motor GM37-555PM | |||
|---|---|---|---|
| TRS-555PM-1233 | Rated voltage: 12VDC | Rated speed: 2800r/min | Output power: 5.7W |
| No-load speed: 3300r/min | Rated torque: 200g.cm | Stall torque: 1150g.cm | |
| No-load current: 200mA | Rated current: 1000mA | Stall current: 5.5A | |
| TRS-555PM-1260 | Rated voltage: 12VDC | Rated speed: 5250r/min | Output power: 16W |
| No-load speed: 6000r/min | Rated torque: 290g.cm | Stall torque: 2200g.cm | |
| No-load current: 300mA | Rated current: 2400mA | Stall current: 15A | |
| TRS-555PM-2440 | Rated voltage: 24VDC | Rated speed: 3150r/min | Output power: 6.4W |
| No-load speed: 4000r/min | Rated torque: 200g.cm | Stall torque: 1000g.cm | |
| No-load current: 150mA | Rated current: 700mA | Stall current: 2.7A | |

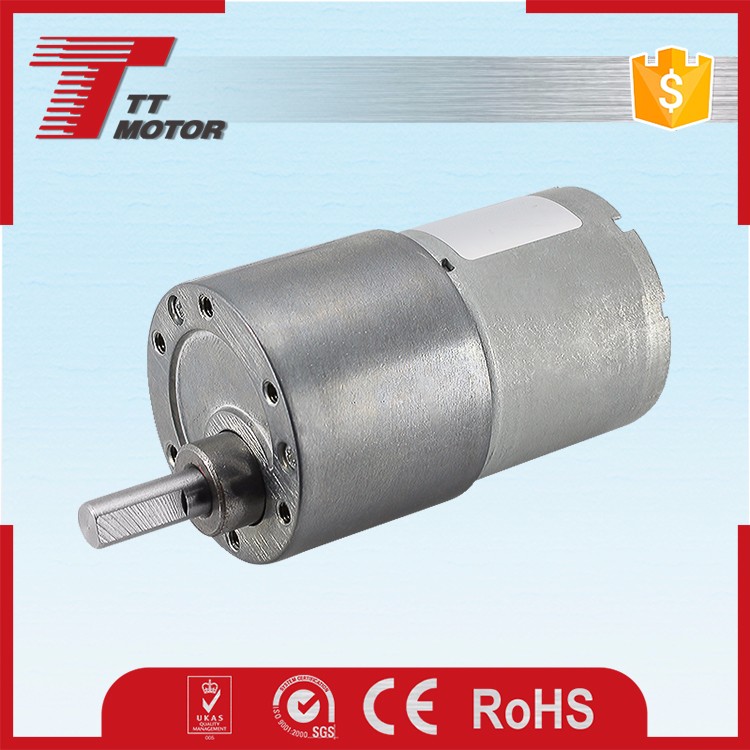

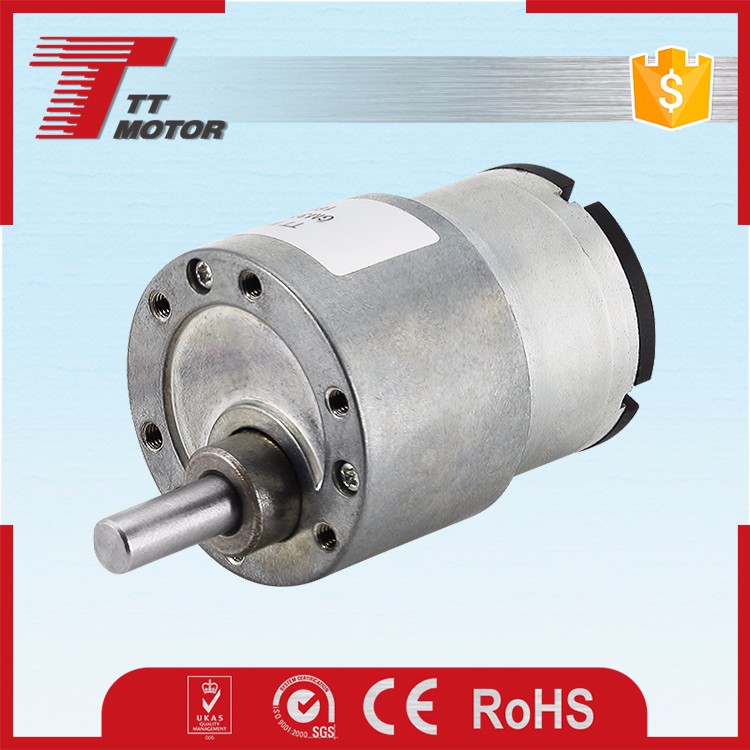

Related Products
GM37-555PM-1233-xxx
| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load speed rpm | 500 | 300 | 160 | 105 | 57 | 36 | 20 | 12 | 6.5 |
| Rated speed rpm | 450 | 280 | 150 | 90 | 60 | 31 | 18 | 11 | 6.3 |
| Rated torque kg.cm | 1.0 | 1.6 | 2.7 | 4.2 | 6.7 | 10 | 10 | 10 | 10 |
| Max. tolerance torque kg.cm | 5.5 | 9.2 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
GM37-555PM-1260-xxx
| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load speed rpm | 900 | 550 | 300 | 190 | 100 | 65 | 35 | 22 | 12 |
| Rated speed rpm | 870 | 525 | 275 | 175 | 90 | 61 | 34 | 22 | 12 |
| Rated torque kg.cm | 1.4 | 2.3 | 3.8 | 6.1 | 10 | 10 | 10 | 10 | 10 |
| Max. tolerance torque kg.cm | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
GM37-555PM-2440-xxx
| Reduction ratio | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load speed rpm | 600 | 360 | 200 | 120 | 65 | 45 | 24 | 15 | 8 |
| Rated speed rpm | 520 | 315 | 165 | 105 | 56 | 36 | 21 | 14 | 8 |
| Rated torque kg.cm | 1.0 | 1.6 | 2.7 | 4.2 | 6.7 | 10 | 10 | 10 | 10 |
| Max. tolerance torque kg.cm | 4.8 | 8.0 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.
Packing & Delivery
Packaging: single carton packing, 500 pieces per box.
Shipping time:
DHL: 3-5 working days;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

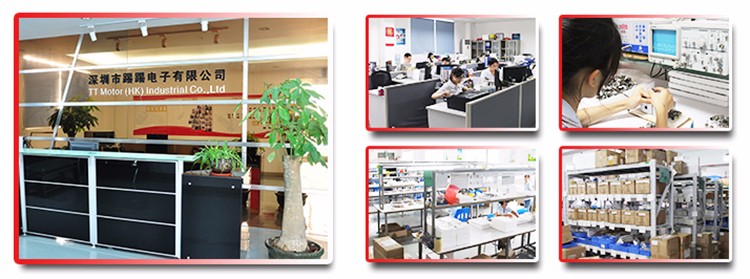

Our Company
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
Certifications
FAQ
How to order?
Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
How about Sample order?
Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Which shipping way is available?
DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.
How long is the deliver [Producing] and shipping?
Deliver time depends on the quantity you order. usually it takes 15-25 working days.
My package has missing products. What can I do?
Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.
How to confirm the payment?
We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
