GMP36-555PM-EN 12 Volt 24 Volt Electric Dc Geared Motor With Encoder
Product Description

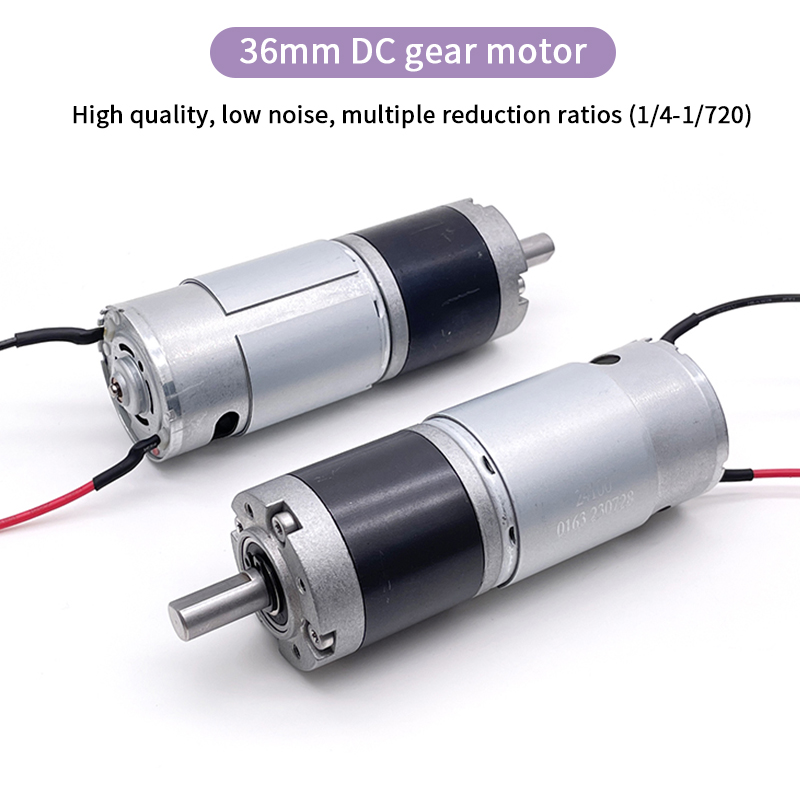

GMP36-555PM-EN 12 Volt 24 Volt Electric DC Geared Motor with Encoder
Main Features

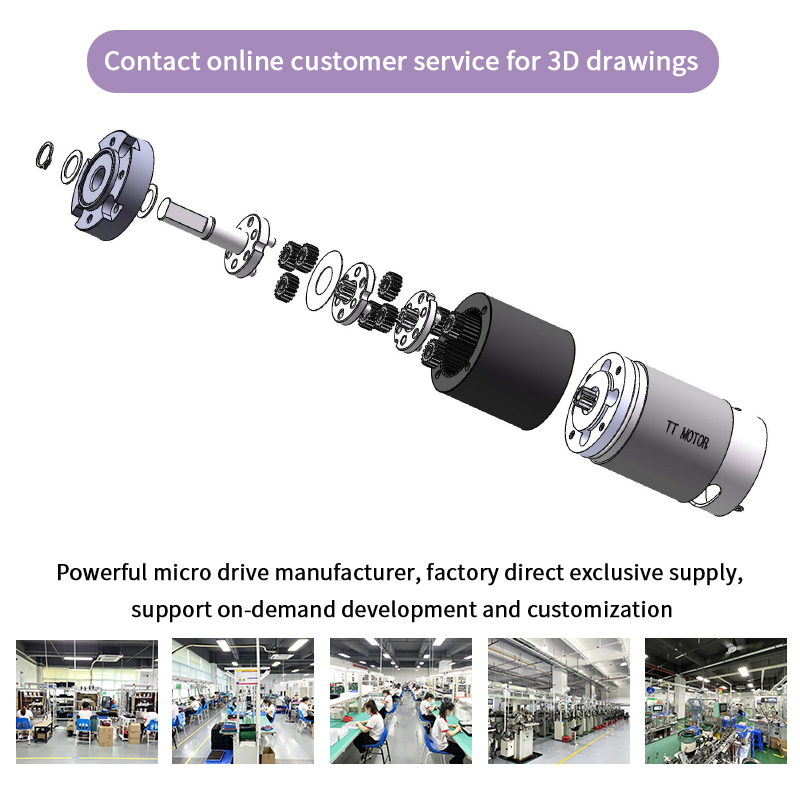

- 36mm Planetary reducer plus 3530, 5 series of carbon brush motor and TEC3650 & 3640 brushless motor
- Small size DC gear motor with low speed and big torque
- 36mm gear motor provides 3.0Nm torque and higher reliability
- Suitable for small diameter, low noise, and big torque applications

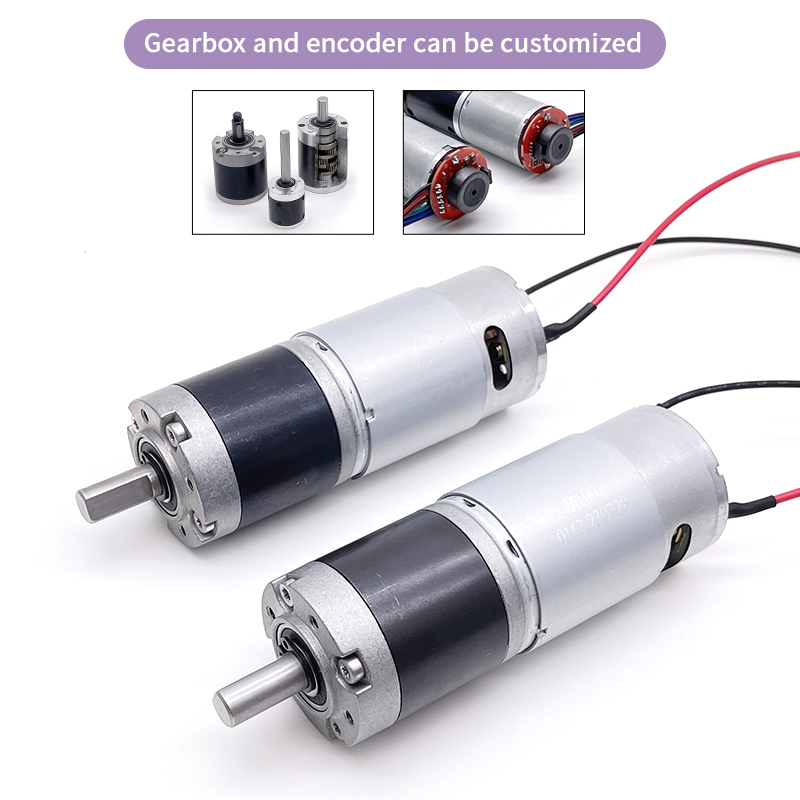

- DC Gear motors can match encoder, 11pr
- Reduction ratios: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720

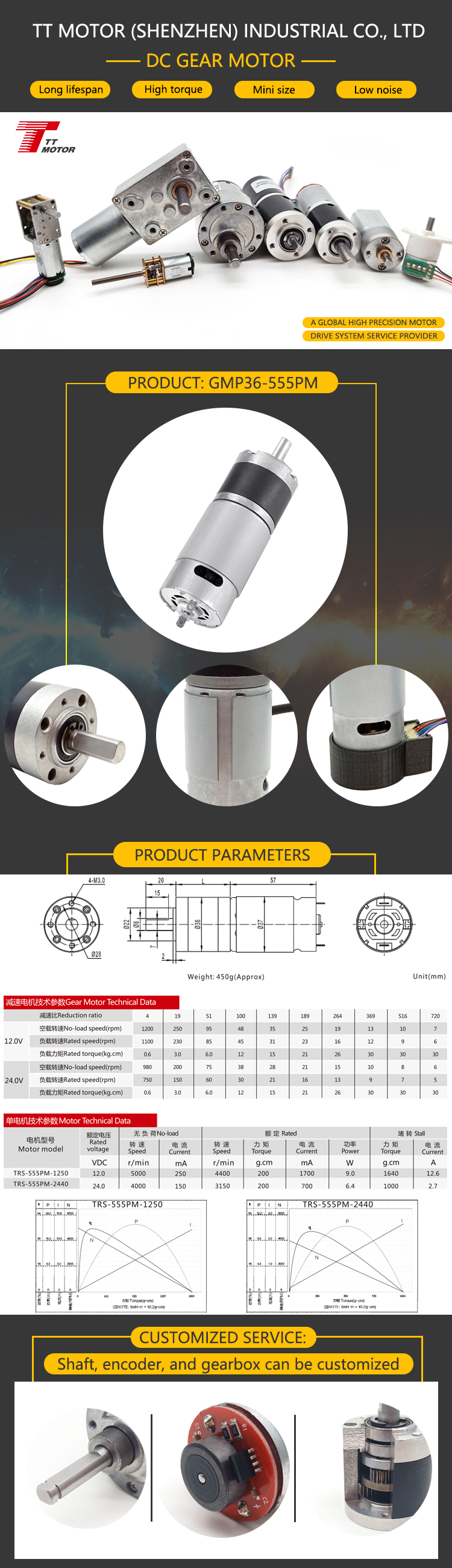

Model Specifications
| Model: Gear Motor GMP36-555PM | |||
|---|---|---|---|
| TTRS-555PM-1233 | Rated voltage: 12VDC | Rated speed: 2800r/min | Output power: 5.7W |
| No-load speed: 3300r/min | Rated torque: 200g.cm | Stall torque: 1150g.cm | |
| No-load current: 200mA | Rated current: 1000mA | Stall current: 5.5A | |
| TTRS-555PM-1260 | Rated voltage: 12VDC | Rated speed: 5250r/min | Output power: 16W |
| No-load speed: 6000r/min | Rated torque: 290g.cm | Stall torque: 2200g.cm | |
| No-load current: 300mA | Rated current: 2400mA | Stall current: 15.0A | |
| TTRS-555PM-2440 | Rated voltage: 24VDC | Rated speed: 3150r/min | Output power: 6.4W |
| No-load speed: 2400r/min | Rated torque: 200g.cm | Stall torque: 1000g.cm | |
| No-load current: 150mA | Rated current: 700mA | Stall current: 2.7A | |
Reduction Ratio Performance Data
GMP36-555PM-1233-xxx
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 750 | 160 | 60 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated speed rpm | 700 | 150 | 55 | 28 | 20 | 15 | 11 | 8 | 5.5 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max. tolerance torque kg.cm | 3.7 | 15 | 35 | 70 | 70 | 70 | 70 | 70 | 70 |
GMP36-555PM-1260-xxx
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1400 | 300 | 110 | 55 | 42 | 32 | 23 | 16 | 11.5 |
| Rated speed rpm | 1300 | 275 | 100 | 50 | 38 | 28 | 20 | 15 | 10.5 |
| Rated torque kg.cm | 0.9 | 3.8 | 9 | 18 | 22 | 30 | 30 | 30 | 30 |
| Max. tolerance torque kg.cm | 5 | 20 | 60 | 60 | 60 | 70 | 70 | 70 | 70 |
GMP36-555PM-2440-xxx
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 980 | 200 | 75 | 38 | 28 | 21 | 15 | 10 | 7.5 |
| Rated speed rpm | 750 | 155 | 60 | 30 | 21 | 16 | 13 | 9.5 | 7 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max. tolerance torque kg.cm | 3.2 | 13 | 25 | 50 | 60 | 70 | 70 | 70 | 70 |

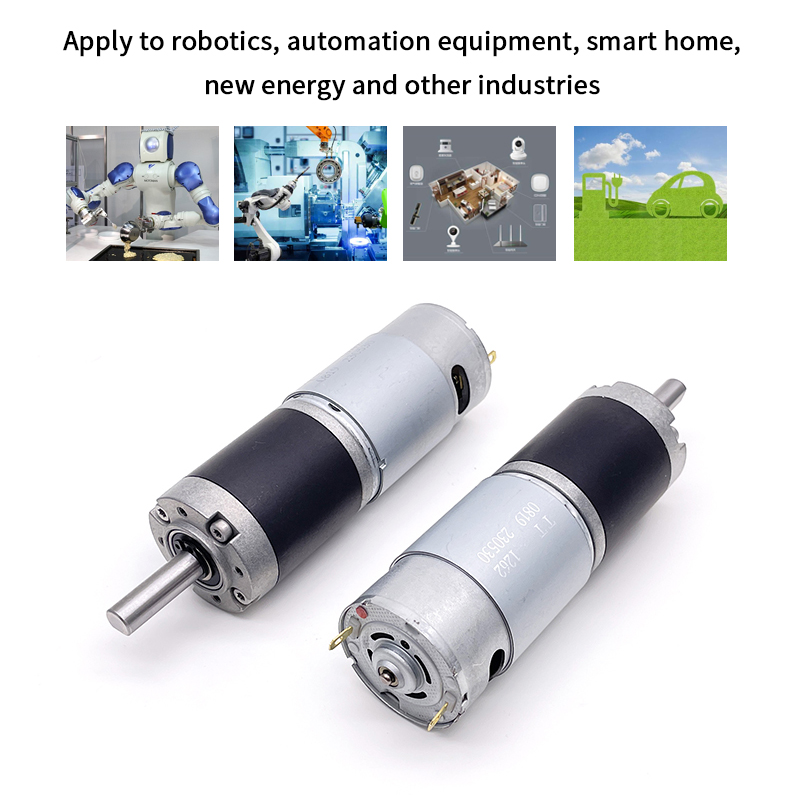

Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Application Categories | ||||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
