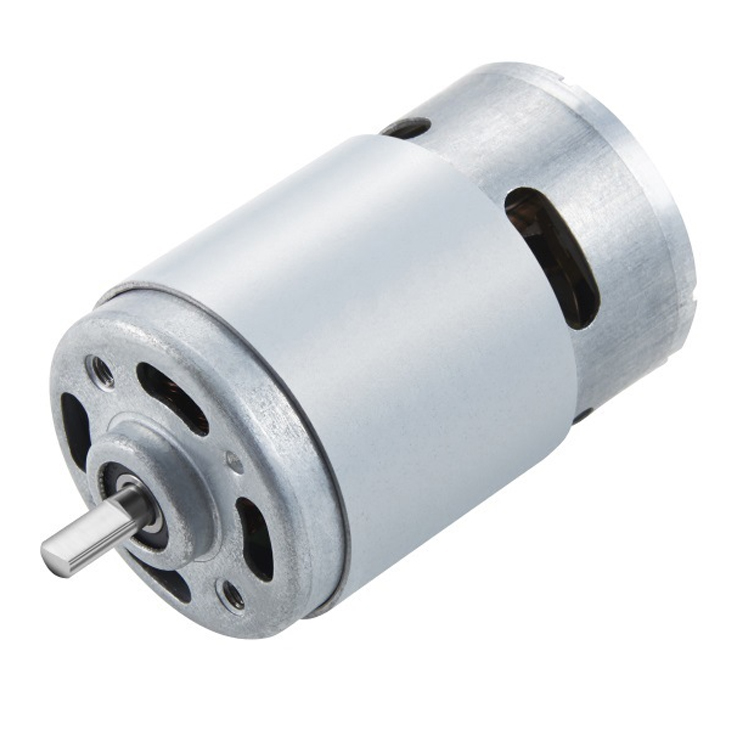

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Product Description
High RPM RS-555 and RS-775 DC Motor (12V / 24V Brushed Motor)
Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
High Performance: High efficiency, less noise, and low current consumption 24v dc motor.
Gearbox Compatibility: Can match with 45mm planetary gearbox, or 51mm gear box.

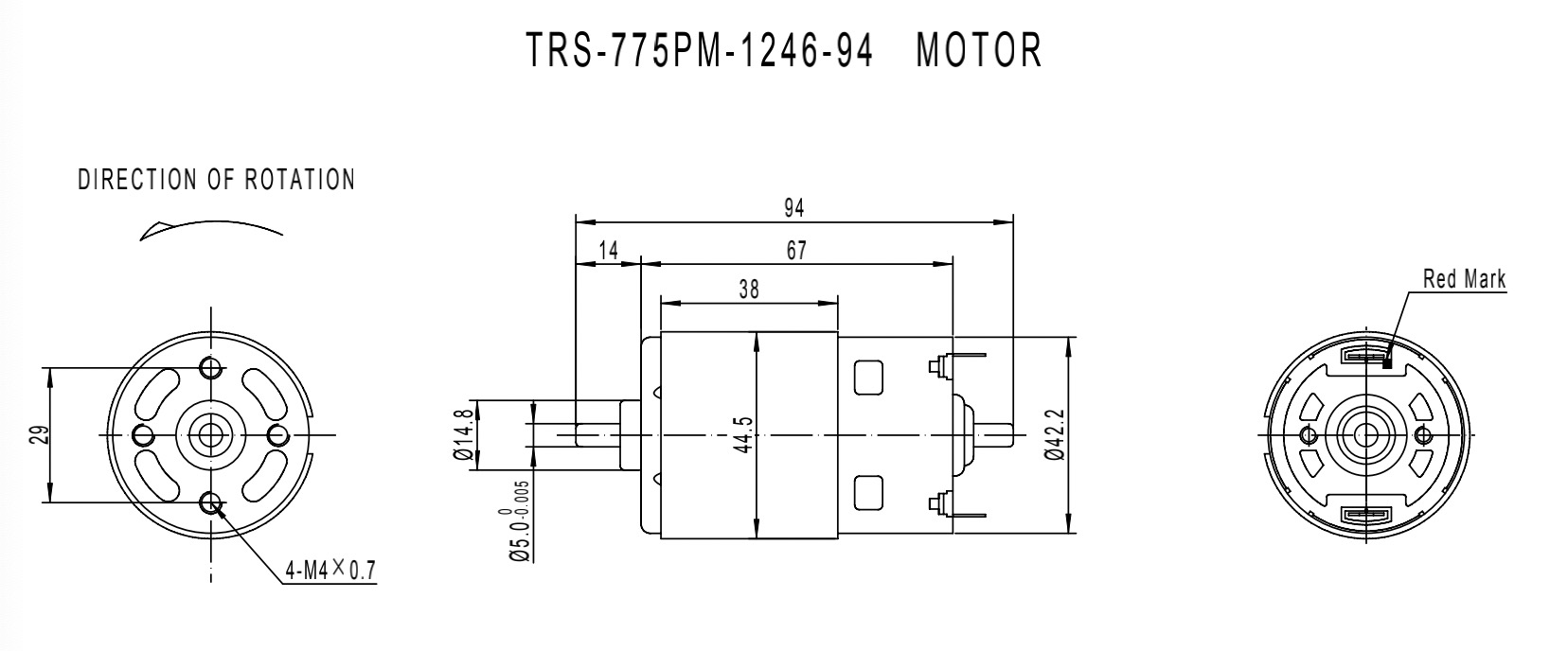

Shaft Dimensions: Shaft diameter of 5.0mm, with shaft lengths available in 14.5mm or 19.5mm.
Mounting Holes: Features 2-M4.0x0.7 mounting configurations.
Encoder Support: Equipped with a double shaft designed for 12ppr encoders.
Samples: Custom sample provisions are available for performance testing.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE (V) | NOMINAL (V) | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| rpm | A | rpm | A | mN.m | g.cm | W | mN.m | g.cm | A | ||||
| TRS-775PM | 2765 | 6.0-30.0 | 24.0 | 7600 | 0.37 | 5810 | 0.22 | 73.53 | 750 | 44.7 | 312.35 | 3186 | 8.23 |
| 4045 | 6.0-15.0 | 12.0 | 4600 | 0.60 | 3500 | 4.30 | 84.31 | 860 | 36.6 | 352.94 | 3600 | 16.1 | |
Frequently Asked Questions
What are the typical applications for these DC brushed motors?
These motors are widely used in commercial and household appliances, including printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, and string trimmers.
What voltage ranges do the RS-555 and RS-775 motors operate on?
They are designed to operate on 12V and 24V DC configurations. For instance, the TRS-775PM-2765 has an operating voltage range of 6.0V to 30.0V, with a nominal voltage of 24.0V.
Can these motors be paired with compatible gearboxes?
Yes, these high-RPM brushed motors can be matched with either a 45mm planetary gearbox or a 51mm gearbox, depending on your torque and system requirements.
What are the shaft design parameters?
The standard shaft has a 5.0mm diameter and is available in lengths of 14.5mm or 19.5mm. It is also designed with a double shaft setup suitable for 12ppr encoders.
What make these motors efficient and durable?
These motors are engineered to provide high operational efficiency, low noise emissions, and low current consumption, making them highly cost-effective and reliable for continuous operations.
Can I request product samples for custom testing?
Yes, product samples can be provided for your evaluation and testing to ensure they meet your application requirements before proceeding with larger orders.
