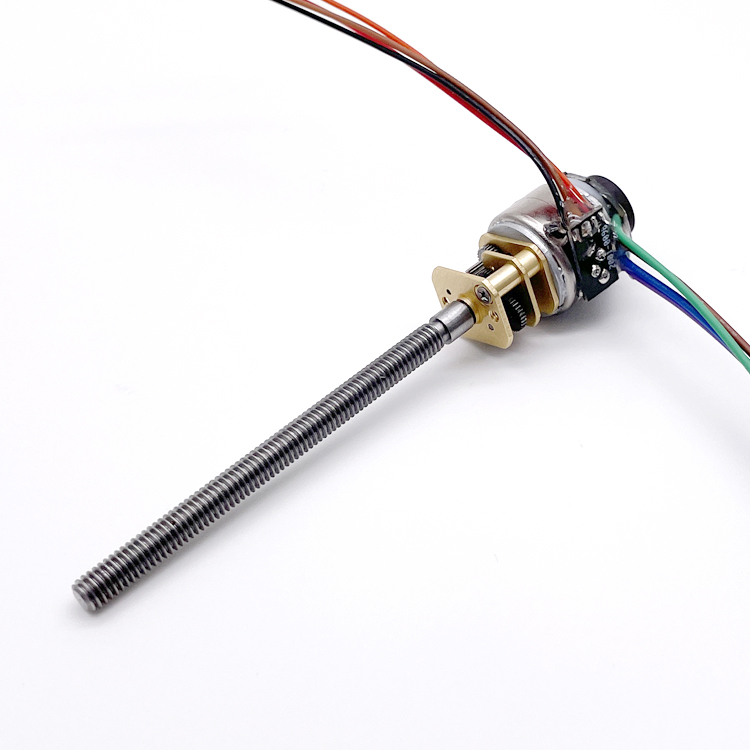

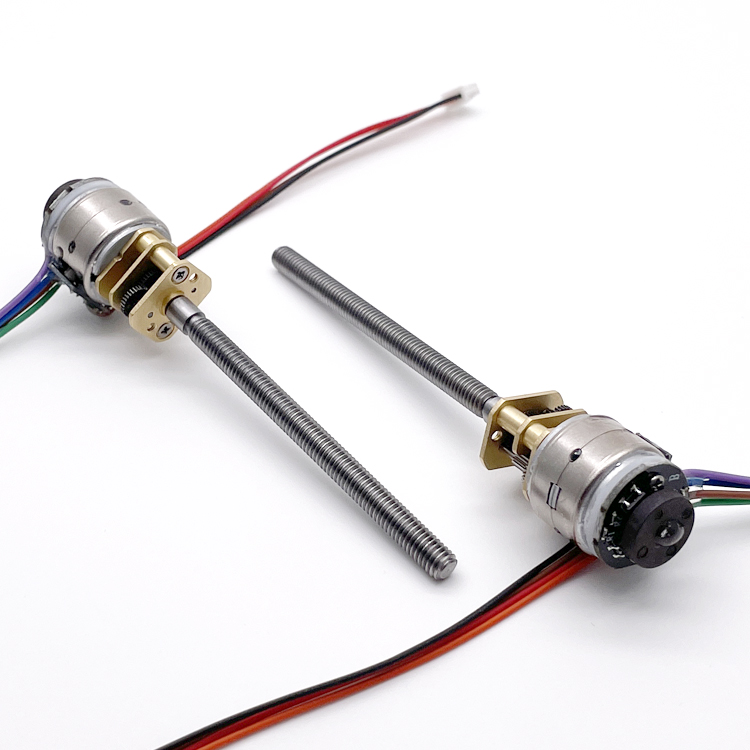

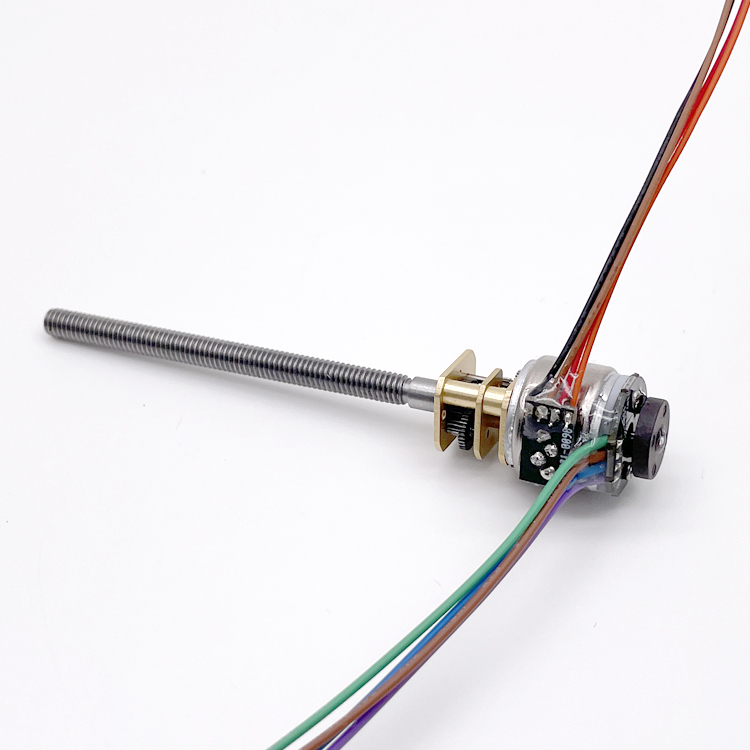

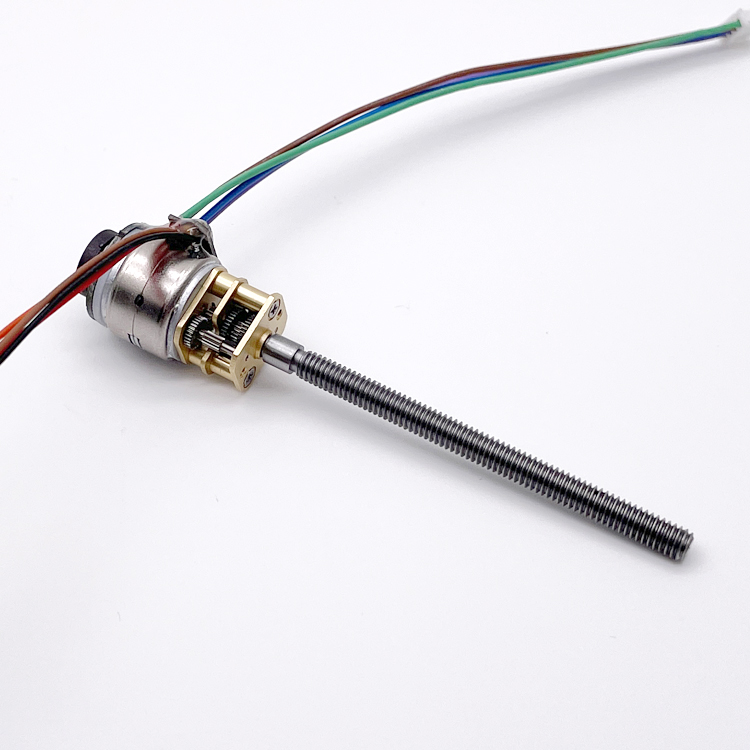

TT Motor China Supplier 5v Geared Dc Motor With Encoder Mini Stepper Motor
Product Description
Main Features

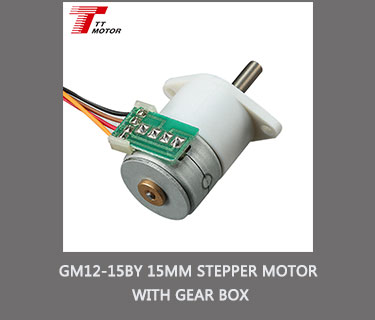

- 12*10mm gearbox plus 15mm stepping motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.05Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380
Technical Specifications
| Model | Parameter Details | Key Metrics |
|---|---|---|
| GM12-15BY-30 | Rated voltage: 5VDC | Resistance: 10Ω |
| No.of Phase: 2 | Holding Torque: 500g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/30 | Pull in Rate: 800pps | |
| GM12-15BY-50 | Rated voltage: 5VDC | Resistance: 10Ω |
| No.of Phase: 2 | Holding Torque: 700g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/50 | Pull in Rate: 850pps | |
| GM12-15BY-110 | Rated voltage: 5VDC | Resistance: 10Ω |
| No.of Phase: 2 | Holding Torque: 1050g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/110 | Pull in Rate: 850pps |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Category | Applications List |
|---|---|
| Business Machines | Vending Machines, Printers, ATM, Copiers and Scanners |
| Camera and Optical | Video, Cameras, Projectors |
| Lawn and Garden | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Production Capacity & Experience
Specializing in micro motors, gear motors and their respective parts since 2000. Products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. The products are dependable and long-lasting, backed by years of experience, exporting 98% of output worldwide.
Key Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Customer Feedback
"Excellent quality, better price, good service, and on time delivery."
Packing & Delivery
Standard packing
Shipping Times
- DHL: 3-5 working days
- UPS / TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- China Post / Sea: Delivery depends on the destination country
Frequently Asked Questions
How do I place an order?
Send an inquiry → Receive the quotation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Cargo ready → Balance payment/delivery → Further cooperation.
Are sample orders supported?
Samples are available. Once the sample fee is received, the sample will be processed. The sample cost will be fully refunded when a formal bulk order is placed.
Which shipping options are available?
DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are supported. Other customized shipping arrangements can also be supported upon request.
What is the production and shipping timeframe?
Production time depends on the specific order quantity, typically ranging from 15 to 25 working days.
What should I do if my package has missing products?
Please submit a support request. The actual package contents will be cross-referenced with your order data to resolve the issue as quickly as possible.
How is payment confirmed?
Payments via T/T and PayPal are accepted. Alternative payment methods can be reviewed and accepted upon confirmation. A deposit of 30-50% is required, with the remaining balance due before shipment.
