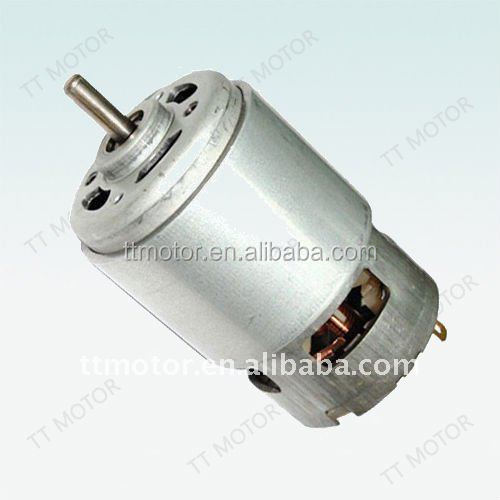

TRS-550PM or 24v Dc Motor
Product Description
24v DC Motor - TRS-550PM
Speed
18000 RPM
Voltage
120V
Torque
3512g.cm
Performance Features
Low current, low noise, no spark, no vibration.
Typical Applications
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| TRS-550PM | 35100 | 3.0-18.0 | 12.0 | 5200 | 0.25 | 4330 | 1.60 | 29.41 | 300 | 13.3 | 176.47 | 1800 | 8.32 |
| 6530 | 6.0-12.0 | 12.0 | 18000 | 1.30 | 16100 | 7.15 | 41.18 | 420 | 69.0 | 344.31 | 3512 | 52.0 | |
Frequently Asked Questions
What is the nominal operating speed of the TRS-550PM motor?
The TRS-550PM motor reaches a high nominal speed of 18,000 RPM at 12.0V under specific configurations, making it suitable for high-speed applications.
What are the main applications of this 24v DC motor?
This motor is typically designed for use in ride-on toys, grass trimmers, air compressors, and handheld drills.
Does this motor generate a lot of vibration or spark?
No, the TRS-550PM features a design that ensures low current draw, low noise, spark-free operation, and no vibration for long-lasting reliability.
What is the maximum torque capability of this motor?
This motor provides a stall torque of up to 3512 g.cm (344.31 mN.m) under its nominal 12.0V testing condition.
What is the voltage operating range?
The operating voltage ranges from 3.0V to 18.0V for the 35100 variant and 6.0V to 12.0V for the 6530 variant, providing versatility based on your application power supply.
