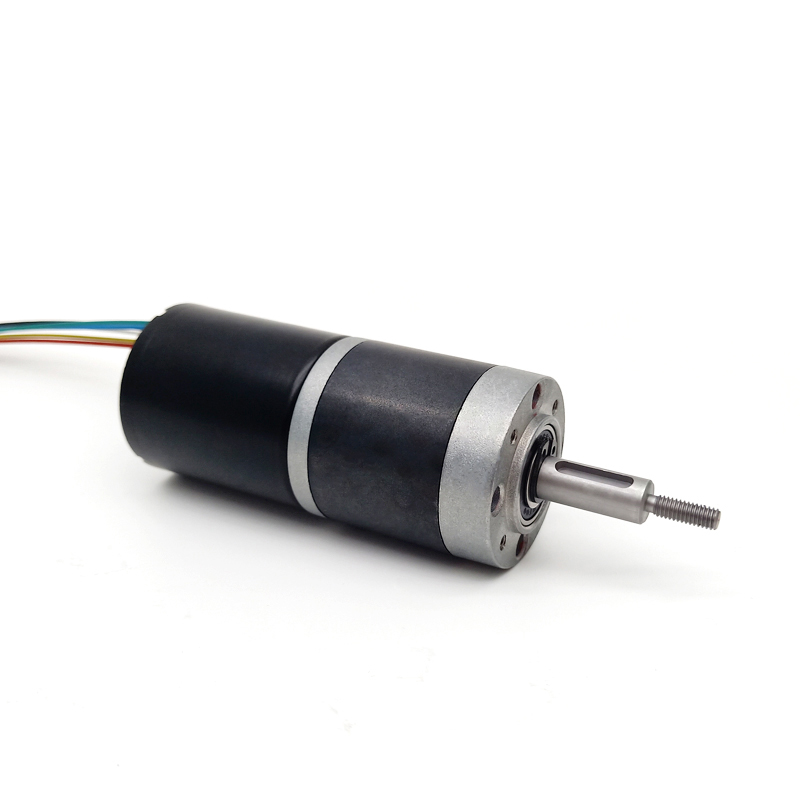

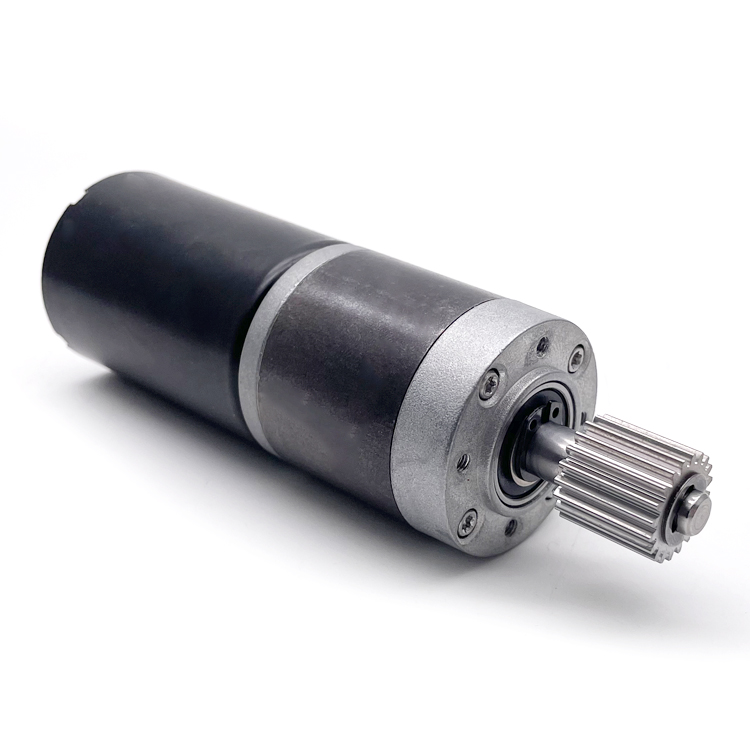

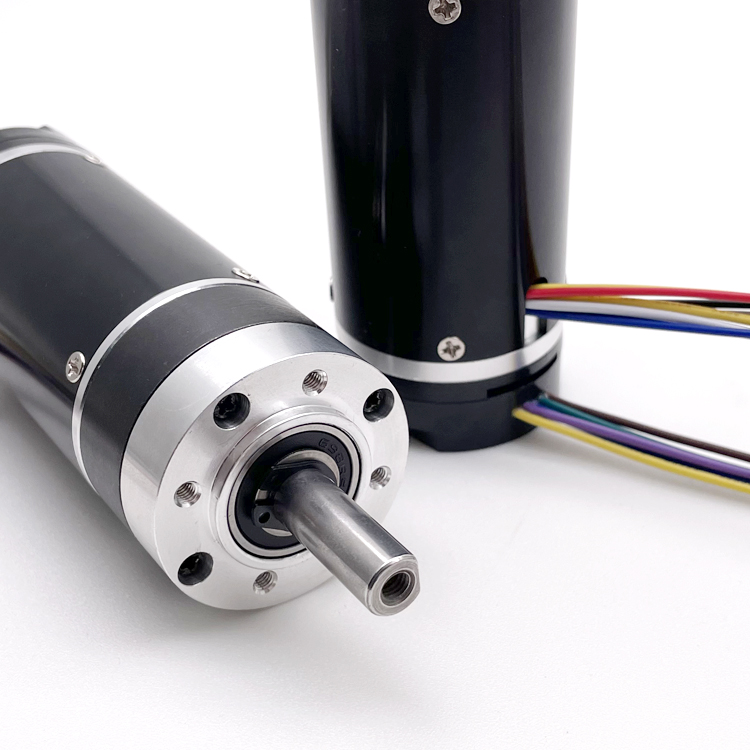

High Torque Low Rpm 12v 24v Brushless Dc Gear Motor
Product Description
High Torque Low RPM 12v 24v Brushless DC Gear Motor
Main Features
- 36mm Planetary reducer plus TEC3650 & 3640 brushless motor
- Small size dc gear motor with low speed and big torque
- 36mm gear motor provide 3.0Nm torque max and more reliable
- Suitable for small diameter, low noise and big torque application
- Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720

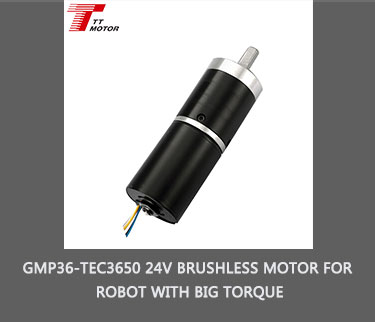

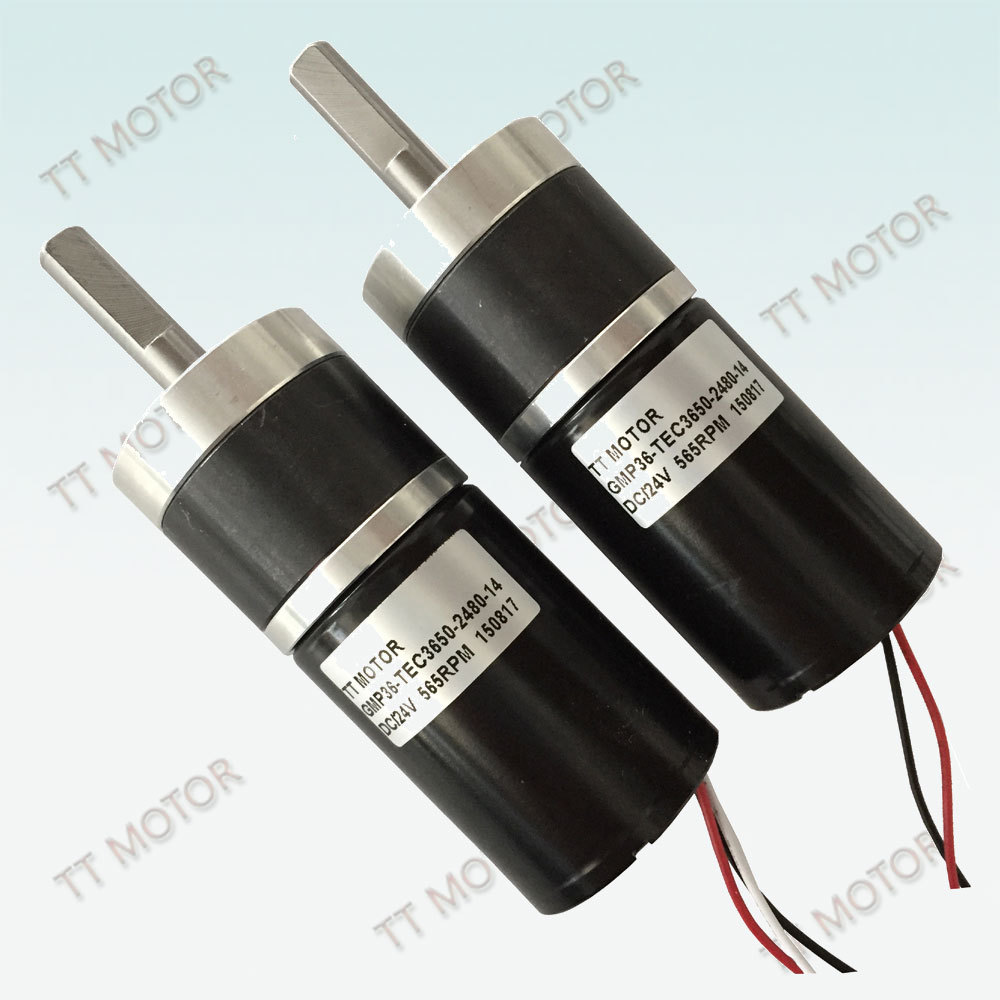

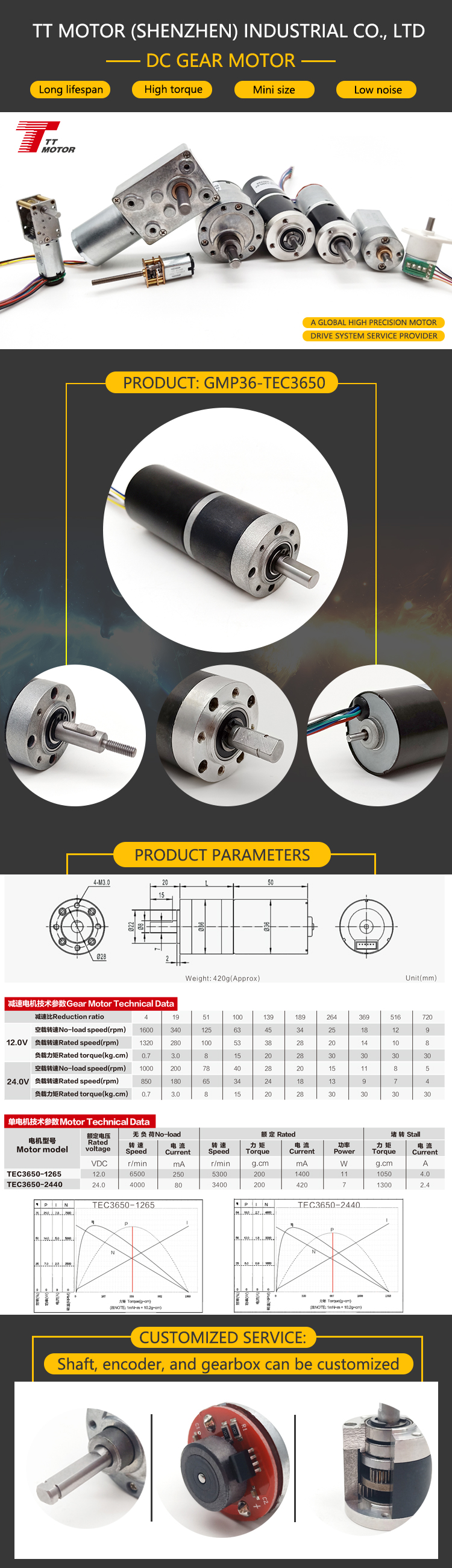

Model Specifications: GMP36-TEC3650
| Model | Electrical Parameters | Speed Specifications | Torque & Current |
|---|---|---|---|
| TEC3650-2465 | Rated voltage: 24VDC | Rated speed: 5400r/min | Output power: 11.5W |
| No-load speed: 6500r/min | Rated torque: 200g.cm | Stall torque: 1150g.cm | |
| No-load current: 200mA | Rated current: 1000mA | Stall current: 2.0A | |
| TEC3650-2440 | Rated voltage: 24VDC | Rated speed: 3200r/min | Output power: 6.6W |
| No-load speed: 4000r/min | Rated torque: 200g.cm | Stall torque: 1000g.cm | |
| No-load current: 120mA | Rated current: 600mA | Stall current: 2.0A | |
| TEC3650-1245 | Rated voltage: 12VDC | Rated speed: 3500r/min | Output power: 8.3W |
| No-load speed: 4500r/min | Rated torque: 230g.cm | Stall torque: 820g.cm | |
| No-load current: 150mA | Rated current: 880mA | Stall current: 2.5A |
Performance Data: GMP36-TEC3650-2440
| Parameter | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length (mm) | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed (rpm) | 950 | 200 | 75 | 40 | 28 | 20 | 15 | 10 | 7.5 |
| Rated speed (rpm) | 750 | 160 | 60 | 30 | 22 | 16 | 12 | 8 | 6 |
| Rated torque (kg.cm) | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 |
| Max. tolerance torque (kg.cm) | 3.2 | 13 | 31 | 60 | 70 | 70 | 70 | 70 | 70 |
Performance Data: GMP36-TEC3650-2465
| Parameter | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length (mm) | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed (rpm) | 1600 | 340 | 125 | 65 | 45 | 33 | 23 | 17 | 12 |
| Rated speed (rpm) | 1300 | 280 | 100 | 53 | 38 | 28 | 20 | 14.5 | 12 |
| Rated torque (kg.cm) | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 |
| Max. tolerance torque (kg.cm) | 3.7 | 15 | 35 | 69 | 70 | 70 | 70 | 70 | 70 |
Performance Data: GMP36-TEC3650-1245-x
| Parameter | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios | Ratios |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length (mm) | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed (rpm) | 1050 | 230 | 85 | 44 | 32 | 23 | 17 | 12 | 9 |
| Rated speed (rpm) | 875 | 185 | 68 | 35 | 25 | 18 | 13 | 10 | 57 |
| Rated torque (kg.cm) | 0.7 | 3.0 | 7.0 | 14 | 19 | 24 | 30 | 30 | 30 |
| Max. tolerance torque (kg.cm) | 2.6 | 11 | 25 | 50 | 70 | 70 | 70 | 70 | 70 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Application Scenarios
| Category | Applications | Applications | Applications | Applications |
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera & Optical | Video | Cameras | Projectors | - |
| Lawn & Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
