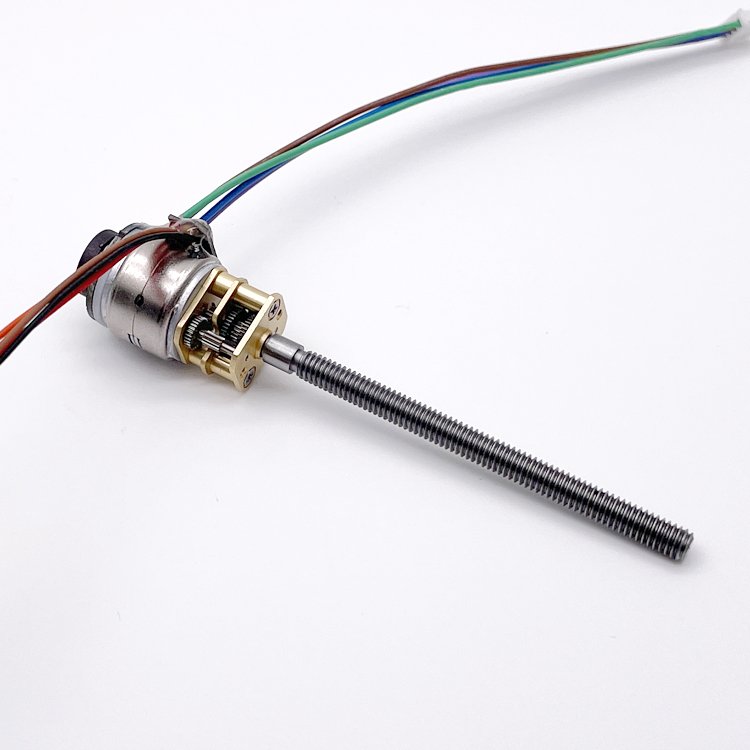

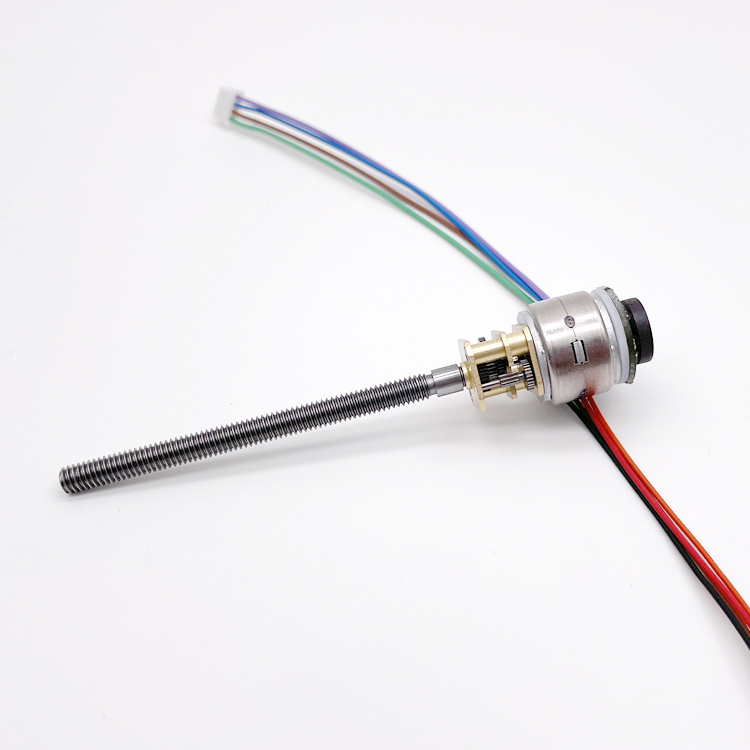

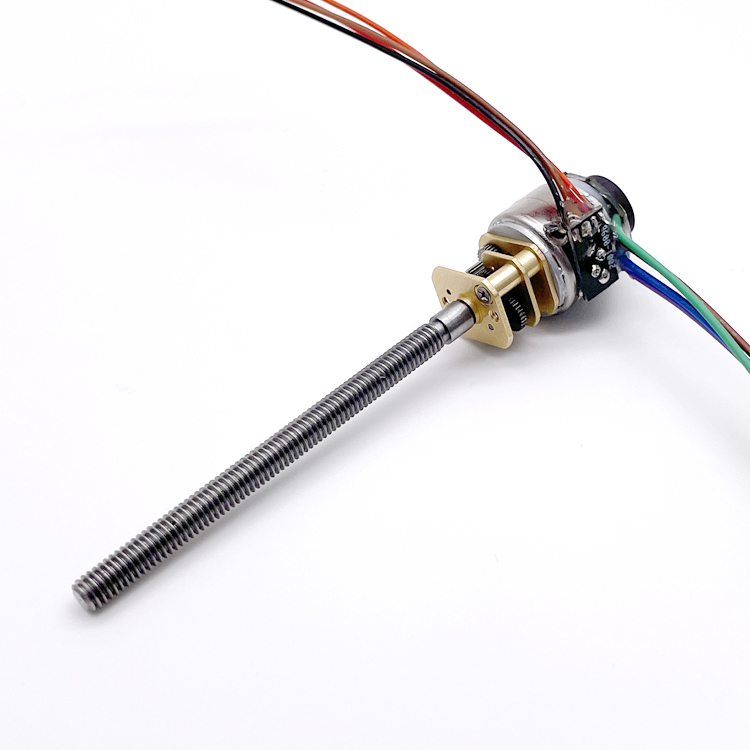

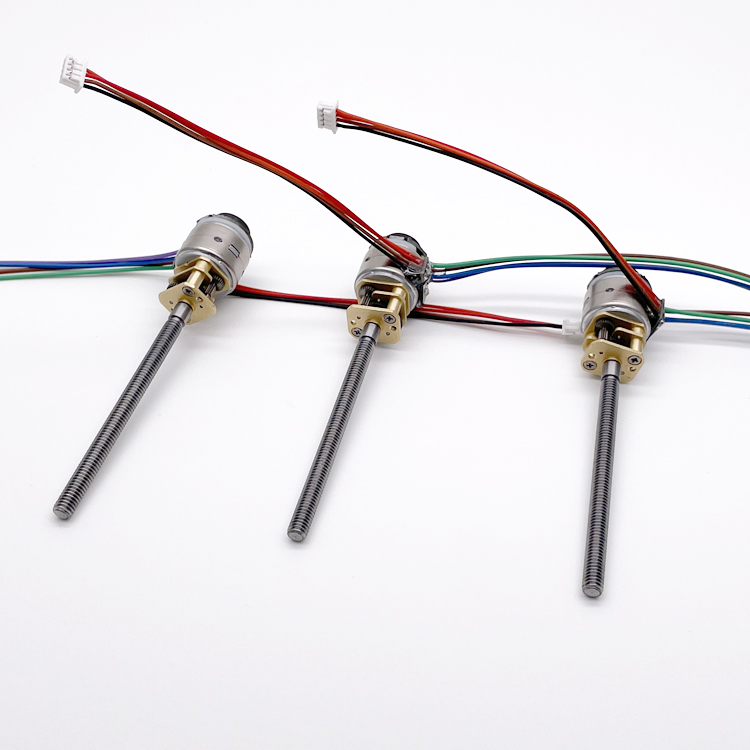

15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder

⚙Main Features

12*10mm gearbox plus 15mm stepping motor
Small size DC gear motor with low speed and big torque
12mm gear motor provides 0.05Nm torque and is highly reliable
Suitable for small diameter, low noise, and big torque applications
Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

📊Specifications

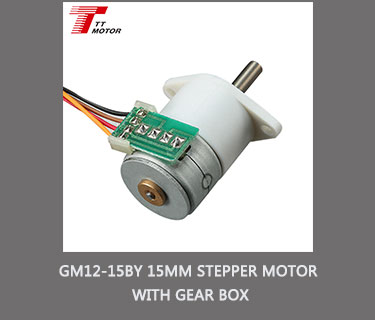

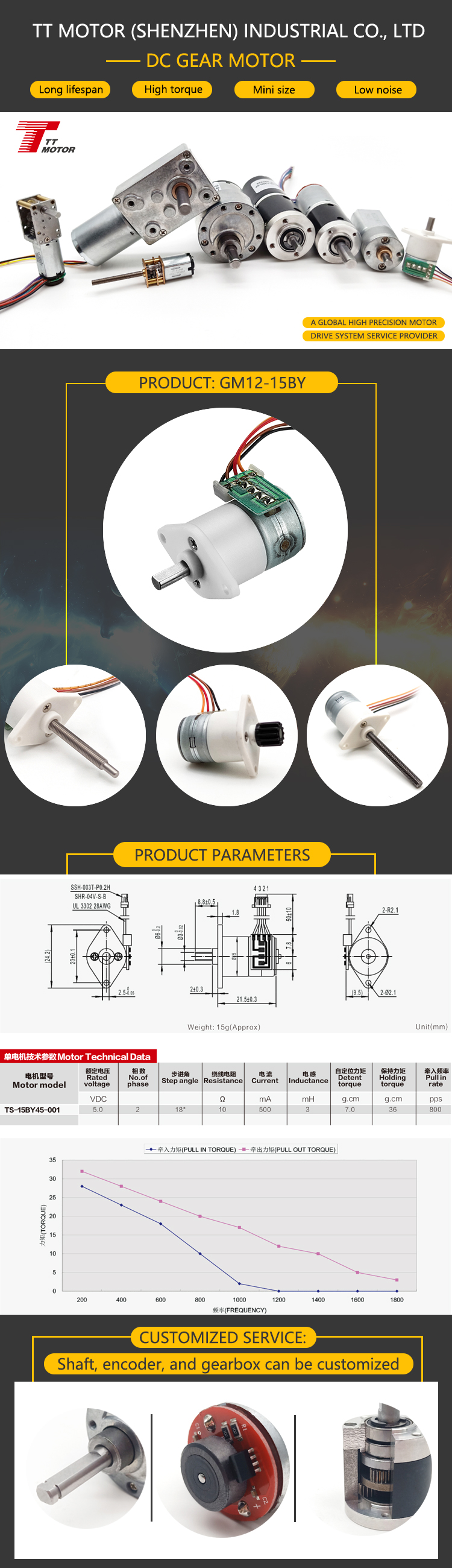

Motor GM12-15BY
GM12-15BY-30	Rated voltage: 5VDC	Resistance: 10Ω
	No. of Phase: 2	Holding Torque: 500g.cm
	Step Angle: 18°	Current: 500mA
	Gear Ratio: 1/30	Pull in Rate: 800pps
GM12-15BY-50	Rated voltage: 5VDC	Resistance: 10Ω
	No. of Phase: 2	Holding Torque: 700g.cm
	Step Angle: 18°	Current: 500mA
	Gear Ratio: 1/50	Pull in Rate: 850pps
GM12-15BY-110	Rated voltage: 5VDC	Resistance: 10Ω
	No. of Phase: 2	Holding Torque: 1050g.cm
	Step Angle: 18°	Current: 500mA
	Gear Ratio: 1/110	Pull in Rate: 850pps

💡Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

🔍Other Applications

Category	Application Fields
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera & Optical	Video	Cameras	Projectors	-
Lawn & Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

📜Certifications

ISO9001, SGS, National high-tech enterprises, etc.

🏢About Our Factory

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many other fields. Dependable and long-lasting, our products are backed by years of manufacturing experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability, and quality, we aim to continue as a pioneer in overseas sales by seeking global partners. If your company is an end-user of micro-motors, a distributor, or an agent, please contact us. We look forward to working together with you in the near future.

🤝Our Customers

Trusted by world-renowned brands, including NIKE, FLEXTRONICS, STANLEY, and others.

📦Packing & Delivery

Standard Packing Solutions

✈Shipping Information

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Delivery duration depends on the destination country
Sea Freight: Delivery duration depends on the destination country

💬Customer Feedback

"Excellent quality, better price, good service, and on-time delivery."

❓Frequently Asked Questions

How to order?

Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

How about Sample order?

Samples are available for you. Please contact us for details. Once we charge you sample fee, please be assured that it will be refunded when you place formal orders.

Which shipping way is available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are all available. Other shipping methods can also be accommodated; please contact us if you need delivery through alternative channels.

How long is the delivery (production) and shipping?

Delivery time depends on the quantity you order. Usually, production takes between 15-25 working days.

My package has missing products. What can I do?

Please contact our support team and we will verify your order contents along with the packing details. We apologize for any inconvenience.

How to confirm the payment?

We accept payment by T/T and PayPal. Other payment methods can also be accepted; please contact us before processing payment through other methods. A 30-50% deposit option is available, with the remaining balance due before shipping.
