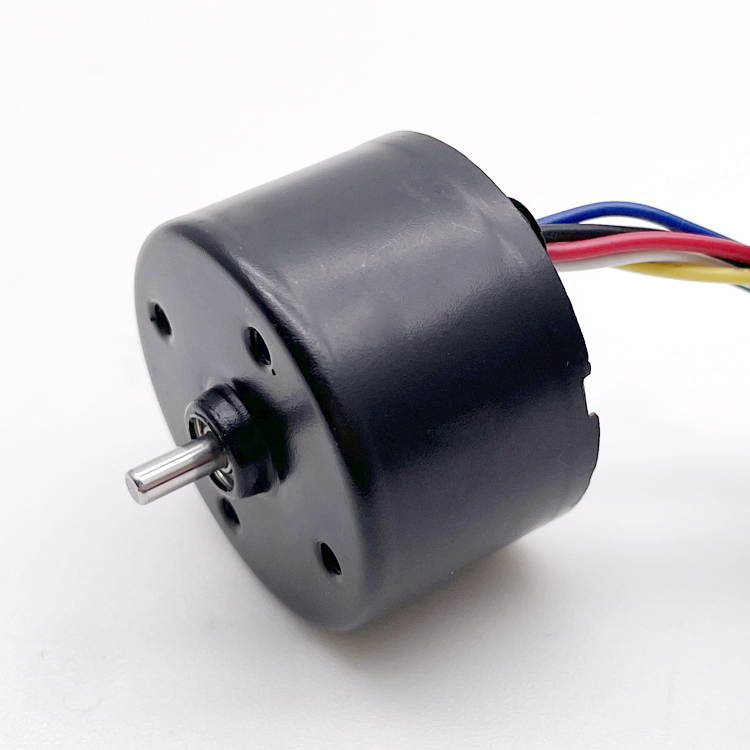

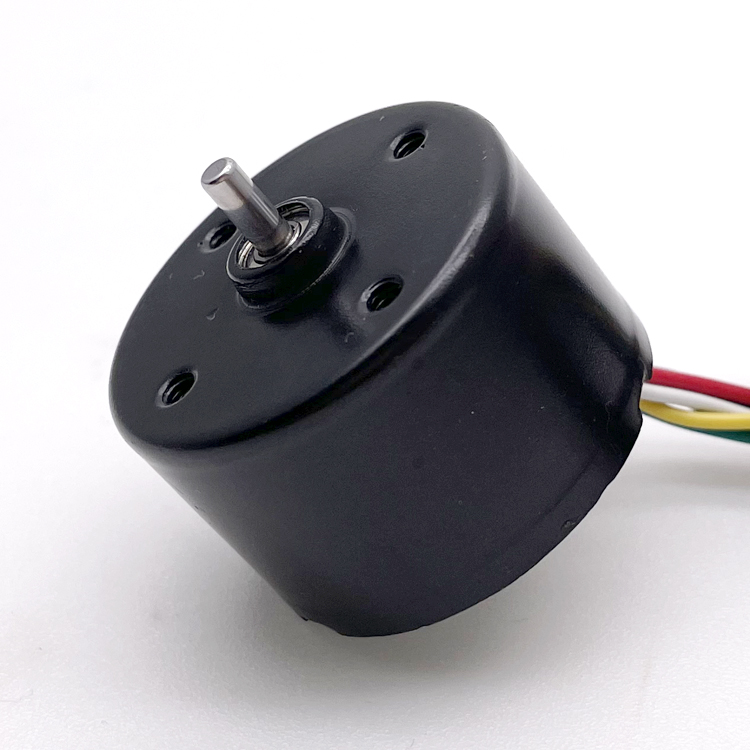

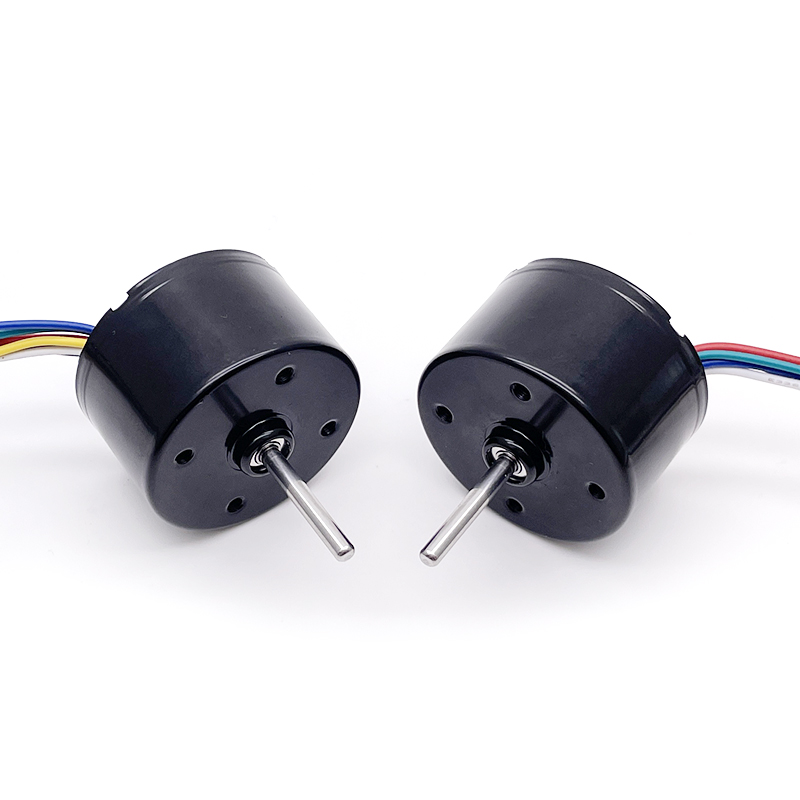

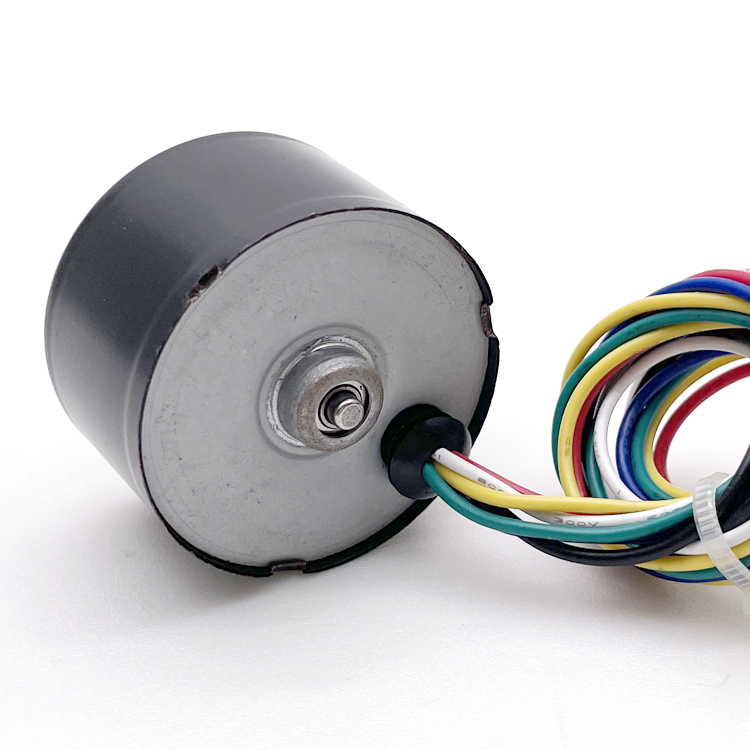

12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor
Product Description
12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor
Main Features
- ✓ 36mm brushless motor
- ✓ Low noise, long life. Built-in drive. Power on, then work
- ✓ Reverse rotation and Brake control
- ✓ PWM Speed control and FG signal feedback
- ✓ Can be available with planetary gearbox

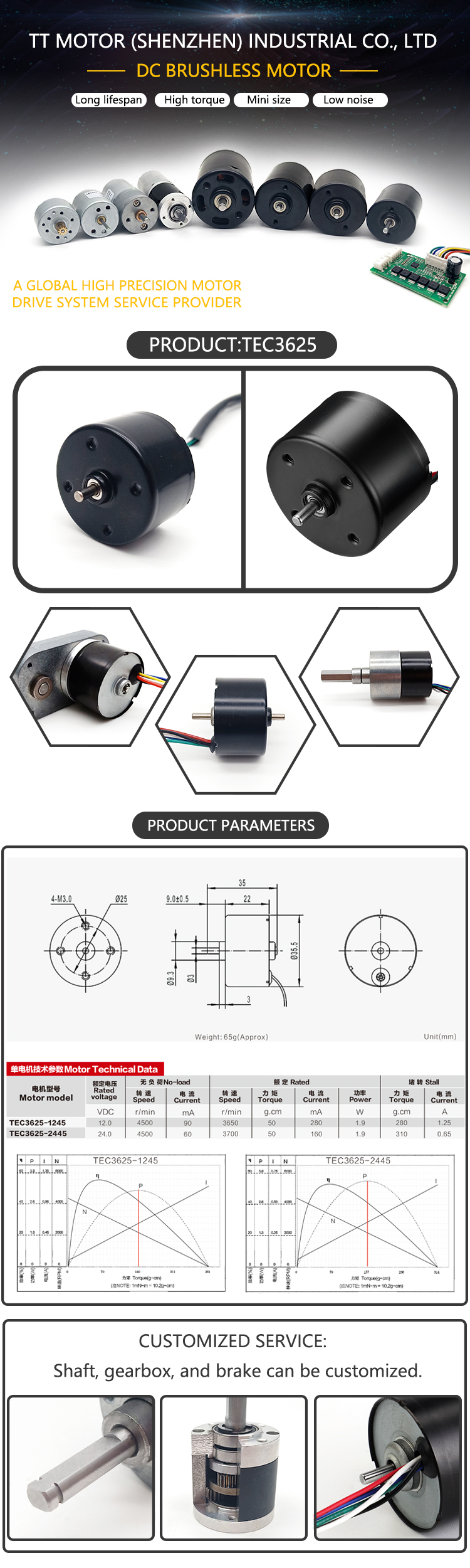

Model Specifications: TEC3625
| Model | Voltage & Power | Speed Specifications | Current Specifications | Torque Specifications |
|---|---|---|---|---|
| TFC3625-0630 |
Rated Voltage: 6VDC Output Power: 2.2W |
No-load Speed: 3000r/min Rated Speed: 2100r/min |
No-load Current: 210mA Rated Current: 400mA Stall Current: 1.8A |
Rated Torque: 100g.cm Stall Torque: 340g.cm |
| TFC3625-1255 |
Rated Voltage: 12VDC Output Power: 4.6W |
No-load Speed: 5500r/min Rated Speed: 4600r/min |
No-load Current: 180mA Rated Current: 800mA Stall Current: 1.6A |
Rated Torque: 84g.cm Stall Torque: 140g.cm |
| TFC3625-2480 |
Rated Voltage: 24VDC Output Power: 16.5W |
No-load Speed: 8000r/min Rated Speed: 5900r/min |
No-load Current: 160mA Rated Current: 900mA Stall Current: 2.0A |
Rated Torque: 270g.cm Stall Torque: 680g.cm |
Product Applications
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Business Machines | Camera & Optical | Lawn & Garden |
|---|---|---|
| Vending Machines, Printers, ATM, Copiers and Scanners | Video, Cameras, Projectors | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
