TT Custom Manufacturer 10mm 15mm 20mm 35mm 3.3V 5V 6V 12V Stepper Motor Mini Stepping Motor Micro Stepper Motor Dc Electric
Product Description

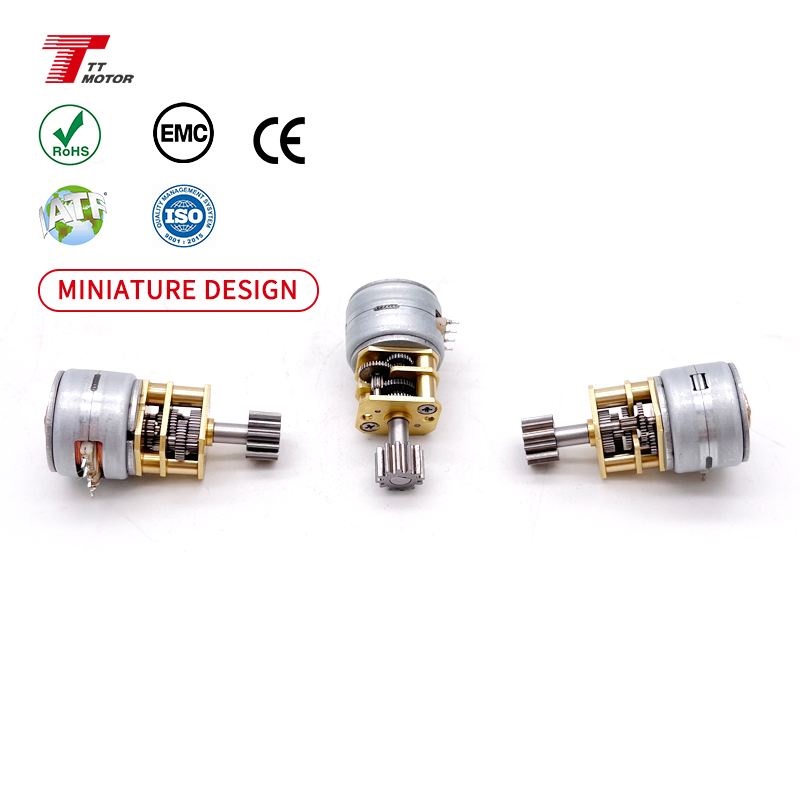

GM12-15BY 15mm DC Gear Motor 5V
High-efficiency micro stepper motor with integrated gearbox
Main Features
12*10mm precision gearbox matched with a 15mm DC gear motor (5V).
Compact size DC gear motor delivering low speed and substantial torque output.
12mm gear motor provides up to 0.05Nm torque with reliable operation.
Optimized for small space requirements, low noise operations, and high torque output demands.
Multiple reduction ratios available: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380.

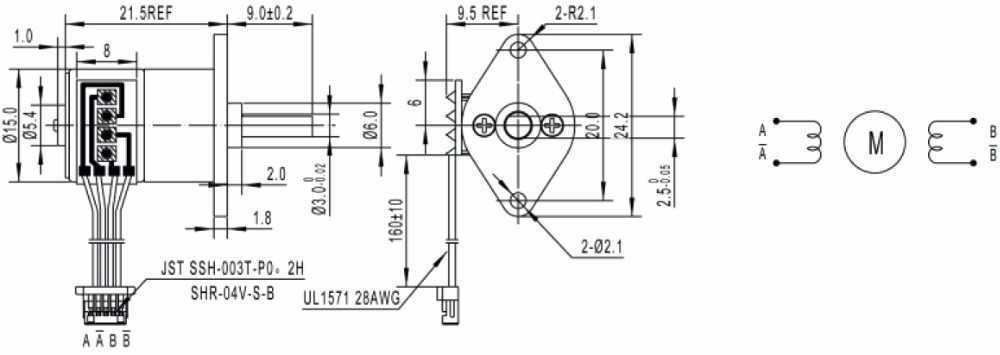

Technical Specifications Table
| Motor Model | Voltage | No. of Phase | Step Angle | Gear Ratio | Resistance | Holding Torque | Current | Pull in Rate |
|---|---|---|---|---|---|---|---|---|
| GM12-15BY-30 | 5 VDC | 2 | 18° | 1/30 | 10Ω | 500 g.cm | 500 mA | 800 pps |
| GM12-15BY-50 | 5 VDC | 2 | 18° | 1/50 | 10Ω | 700 g.cm | 500 mA | 850 pps |
| GM12-15BY-110 | 5 VDC | 2 | 18° | 1/110 | 10Ω | 1050 g.cm | 500 mA | 850 pps |

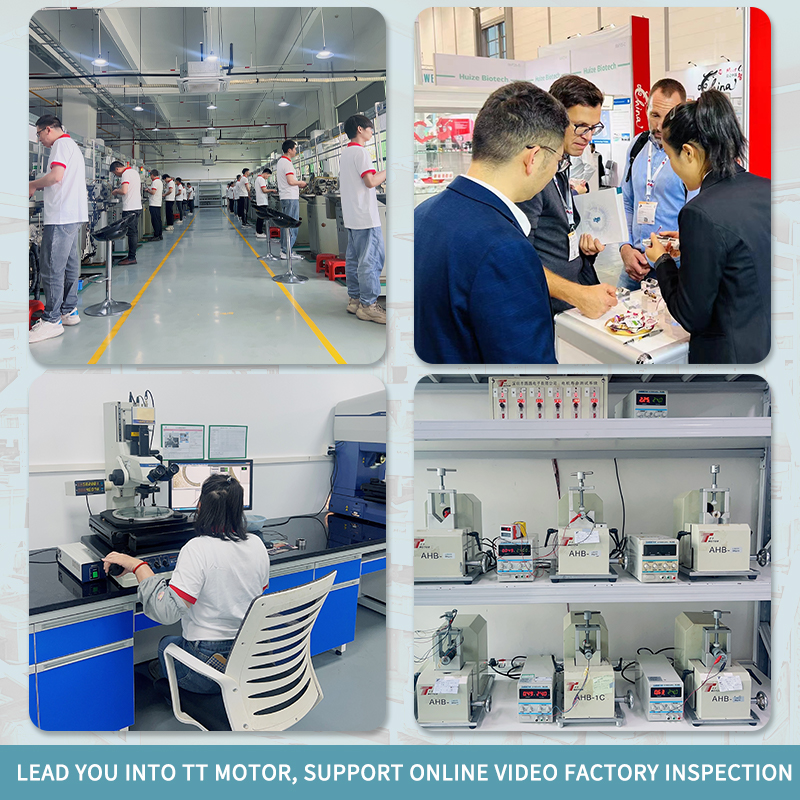

Product & Production Process Showcase
Frequently Asked Questions
What is the rated voltage of the GM12-15BY stepper gear motor?
The rated voltage for this micro stepper gear motor is 5VDC, which is suitable for various low-power applications.
What is the step angle of this gear motor?
The motor features an 18-degree step angle, allowing for precise control and movement within your application system.
How many gear reduction ratios are available for this product?
There are multiple reduction ratios to choose from, including 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, and 380, to match your specific speed and torque requirements.
What is the maximum holding torque of the GM12-15BY motor?
The holding torque varies depending on the gear ratio: the GM12-15BY-30 offers 500g.cm, the GM12-15BY-50 offers 700g.cm, and the GM12-15BY-110 provides a maximum holding torque of 1050g.cm.
What are the typical applications for this micro gear motor?
Due to its small diameter, low noise, and high torque design, it is ideal for precision applications such as robotics, medical instruments, smart locks, and portable electronics.
What are the physical dimensions of the gear motor unit?
The unit is composed of a compact 12*10mm gearbox integrated with a 15mm DC stepper motor, providing robust performance in a space-saving structure.
