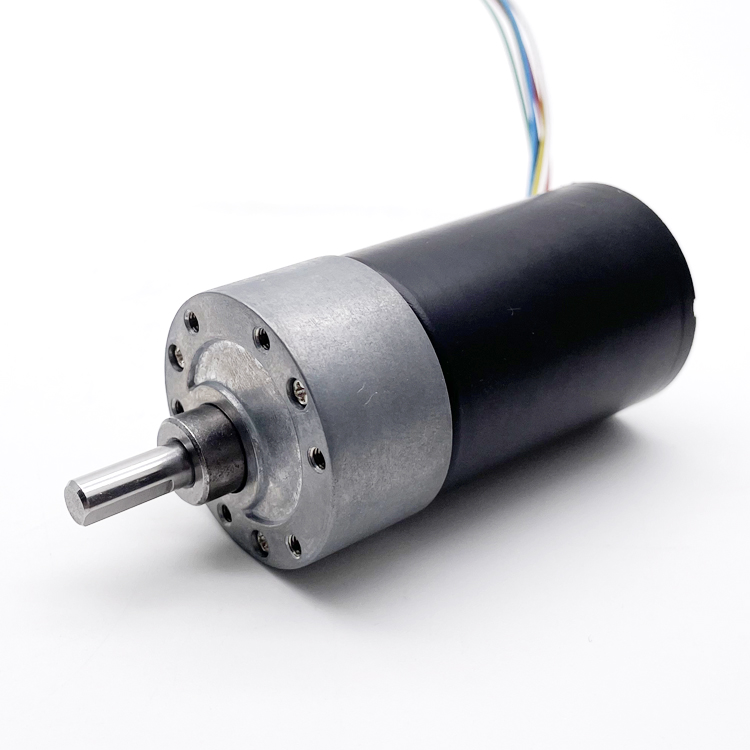

37mm Electric Bldc Motor 12v 24v Mini Dc Gear Motor
Product Description
37mm electric bldc motor 12v 24v mini dc gear motor
Main Features
- 37mm spur gearbox plus TEC3650 & 3640 brushless motor
- Small size dc gear motor with low speed and big torque
- 37mm gear motor provide 1.0Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810
Model specifications: GM37-TEC3650
| Model | Electrical Characteristics | Performance Values | Stall Parameters |
|---|---|---|---|
| TEC3650-2465 | Rated Voltage: 24VDC | Rated Speed: 5400 r/min | Output Power: 11.5W |
| No-load Speed: 6500 r/min | Rated Torque: 200 g.cm | Stall Torque: 1150 g.cm | |
| No-load Current: 200mA | Rated Current: 1000mA | Stall Current: 2A | |
| TEC3650-2440 | Rated Voltage: 24VDC | Rated Speed: 3200 r/min | Output Power: 6.6W |
| No-load Speed: 4000 r/min | Rated Torque: 200 g.cm | Stall Torque: 1000 g.cm | |
| No-load Current: 120mA | Rated Current: 600mA | Stall Current: 2A | |
| TEC3650-1245 | Rated Voltage: 12VDC | Rated Speed: 3500 r/min | Output Power: 8.3W |
| No-load Speed: 4500 r/min | Rated Torque: 230 g.cm | Stall Torque: 820 g.cm | |
| No-load Current: 150mA | Rated Current: 800mA | Stall Current: 2.5A |
Gearbox Reduction Ratio & Performance Tables
Model: GM37-TEC3650-2465-xx
| Reduction ratio | 6 | 10 | 30 | 44 | 56 | 90 | 169 | 270 | 506 |
| Length mm | 19 | 19 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load speed rpm | 1000 | 650 | 215 | 145 | 110 | 70 | 38 | 24 | 12.5 |
| Rated speed rpm | 830 | 540 | 180 | 122 | 95 | 65 | 34 | 22 | 11 |
| Rated torque kg.cm | 0.7 | 1.2 | 3.6 | 5.2 | 6.5 | 10 | 10 | 10 | 10 |
| Max. tolerance torque kg.cm | 2 | 5 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Model: GM37-TEC3650-2440-xx
| Reduction ratio | 6 | 10 | 30 | 44 | 56 | 90 | 169 | 270 | 506 |
| Length mm | 19 | 19 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load speed rpm | 620 | 380 | 130 | 90 | 70 | 43 | 23 | 14.5 | 7.5 |
| Rated speed rpm | 500 | 320 | 100 | 72 | 55 | 36 | 19 | 12.5 | 6.5 |
| Rated torque kg.cm | 0.7 | 1.2 | 3.6 | 5.2 | 6.5 | 10 | 10 | 10 | 10 |
| Max. tolerance torque kg.cm | 2 | 5 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Model: GM37-TEC3650-1245-xx
| Reduction ratio | 6 | 10 | 30 | 44 | 56 | 90 | 169 | 270 | 506 |
| Length mm | 19 | 19 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load speed rpm | 710 | 430 | 150 | 100 | 80 | 50 | 27 | 17 | 9 |
| Rated speed rpm | 580 | 350 | 115 | 80 | 62 | 39 | 21 | 13 | 7 |
| Rated torque kg.cm | 0.9 | 1.6 | 4.1 | 6.1 | 7.7 | 10 | 10 | 10 | 10 |
| Max. tolerance torque kg.cm | 3.5 | 5.7 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Product Applications
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Business Machines
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment & Gaming
Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies
Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care & Power Tools
Hair Cutting, Hair Care, Massagers. Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Certifications & Standards
ISO9001, SGS, National high-tech enterprises, etc.
Manufacturing Capabilities
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
Our Major Clients & Feedback
Partners: NIKE, FLEXTRONICS, STANLEY, etc.
Client Feedback
"Excellent quality, better price, good service, and on time delivery."
Packing & Delivery Details
Standard Packing Protocol
Shipping & Logistics Timeframes
| Shipping Mode | Estimated Delivery Duration |
|---|---|
| DHL | 3-5 working days |
| UPS | 5-7 working days |
| TNT | 5-7 working days |
| FedEx | 7-9 working days |
| EMS | 12-15 working days |
| China Post | Depends on destination country |
| Sea Freight | Depends on destination country |
Client Transactions & Orders
Frequently Asked Questions
How do I place an order?
To place an order, please send us an inquiry. Once received, we will send you our detailed quotation. We can then negotiate order details, confirm the samples, sign the contract/receive the deposit, initiate mass production, notify you when cargo is ready, receive the balance payment, execute delivery, and establish further cooperation.
Can I request product samples first?
Yes, samples are readily available for you. Please contact us directly for specific terms. Rest assured, if we charge a sample fee initially, it will be fully refunded to you once you place your first formal production order.
What shipping methods are supported?
We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. If you require shipping via any other method, please inform us, and we will do our best to accommodate your request.
How long does production and shipping take?
Delivery/production time is dependent on your specific order volume and customization requirements. Typically, standard manufacturing takes between 15-25 working days.
My package arrived with missing items. What should I do?
Please contact our customer support team immediately. We will cross-reference your order configuration with the packaged contents details to locate the missing pieces. We apologize for any inconvenience caused.
What payment methods do you accept?
We accept payment by T/T and PayPal. Other payment methods can also be negotiated; please contact us before completing your transaction. Standard payment terms include a 30-50% deposit, with the remaining balance due prior to shipping.
